JIC 37° FLARE & UNO(O RING BOSS) THREADS • JIC is JOINT INDUSTRIES COUNCIL – SAE J514, ISO 8434-2 • UN is UNIFIED NATIONAL – SAE J1926, ISO 11926-2 JIC & UNO (O Ring Boss) thread forms are the same (ASME B1.1). Method of sealing differs. JIC male has 37° flare which seals against 37° seat in female. JIC male can also seal against 37° flared tubing with JIC nut and sleeve. JIC male can also be used with RYCO S134 J-Lok Female Nut and Flareless Olive on Imperial OD tubing.

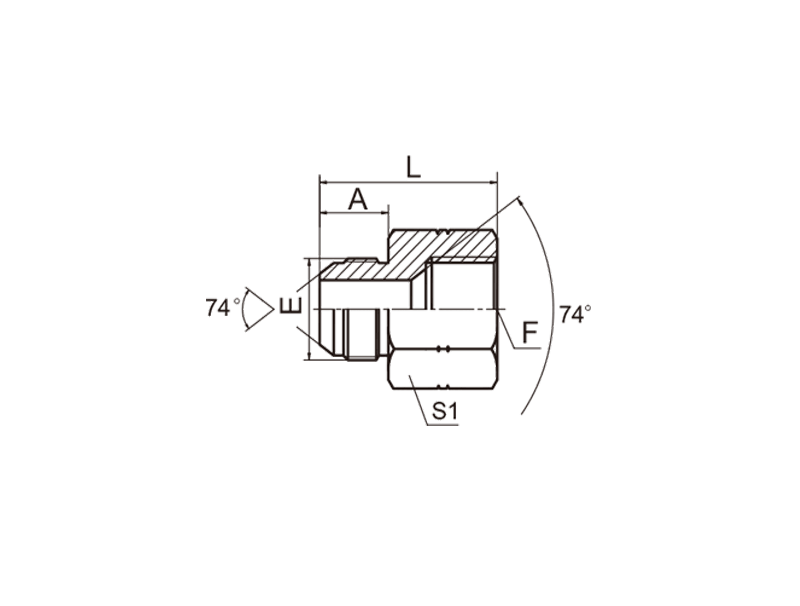

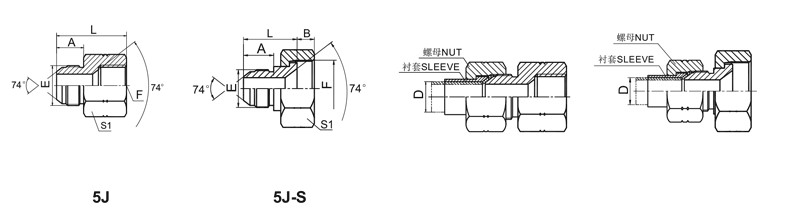

PART NO. | THREAD | DIMENSIONS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
E | F | A | L | S1 | B | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-04-05 | 7/16"X20 | 1/2"X20 | 14 | 30.6 | 17 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-04-06S | 7/16"X20 | 9/16"X18 | 14 | 26.2 | 19 | 9.8 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-04-08S | 7/16"x20 | 3/4"X16 | 14 | 26.2 | 24 | 10.9 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-04-10S | 7/16"X20 | 7/8"X14 | 14 | 28 | 27 | 12.8 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-04-12S | 7/16"X20 | 1.1/16"X12 | 14 | 29.8 | 32 | 15 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-04-14S | 7/16"X20 | 1.3/16"X12 | 14 | 32.5 | 36 | 15.2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-05-06 | 1/2"X20 | 9/16"X18 | 14 | 33.7 | 19 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-05-08S | 1/2"X20 | 3/4"X16 | 14 | 26.2 | 24 | 10.9 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-05-10S | 1/2"X20 | 7/8"X14 | 14 | 28 | 27 | 12.8 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-05-12S | 1/2"X20 | 1.1/16"X12 | 14 | 29.8 | 32 | 15 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-06-04 | 9/16"X18 | 7/16"X20 | 14.1 | 30.6 | 17 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-06-08S | 9/16"X18 | 3/4"X16 | 14.1 | 26.3 | 24 | 10.9 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-06-10S | 9/16"X18 | 7/8"X14 | 14.1 | 28.2 | 27 | 12.8 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-06-12S | 9/16"X18 | 1.1/16"X12 | 14.1 | 30.1 | 32 | 15 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-06-14S | 9/16"X18 | 1.3/16"X12 | 14.1 | 32.5 | 36 | 15.2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-06-16S | 9/16"X18 | 1.5/16"X12 | 14.1 | 33 | 38 | 15.9 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-08-04 | 3/4"X16 | 7/16"X20 | 16.7 | 33 | 22 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-08-06 | 3/4"X16 | 9/16"X18 | 16.7 | 36.5 | 22 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-08-10 | 3/4"X16 | 7/8"X14 | 16.7 | 36.2 | 30 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-08-12S | 3/4"X16 | 1.1/16"X12 | 16.7 | 33.3 | 32 | 15 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-08-14S | 3/4"X16 | 1.3/16"X12 | 16.7 | 35 | 36 | 15.2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-08-16S | 3/4"X16 | 1.5/16"X12 | 16.7 | 35.6 | 38 | 15.9 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-08-20S | 3/4"X16 | 1.5/8"X12 | 16.7 | 35.5 | 50 | 16.8 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-10-08 | 7/8"X14 | 3/4"X16 | 19.3 | 40.5 | 24 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-10-12 | 7/8"X14 | 1.1/16"X12 | 19.3 | 45.1 | 32 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-10-16S | 7/8"X14 | 1.5/16"X12 | 19.3 | 37.5 | 38 | 15.9 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-10-20S | 7/8"X14 | 1.5/8"X12 | 19.3 | 37.9 | 50 | 16.8 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-10-24S | 7/8"X14 | 1.7/8"X12 | 19.3 | 42 | 60 | 19.7 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-12-08 | 1.1/16"X12 | 3/4"X16 | 21.9 | 43 | 30 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-12-10 | 1.1/16"X12 | 7/8"X14 | 21.9 | 43 | 30 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-12-16S | 1.1/16"X12 | 1.5/16"X12 | 22 | 40.2 | 38 | 15.9 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-12-20S | 1.1/16"X12 | 1.5/8"X12 | 22 | 40.6 | 50 | 16.8 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-12-24S | 1.1/16"X12 | 1.7/8"X12 | 22 | 42 | 60 | 19.7 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-16-08 | 1.5/16"X12 | 3/4"X16 | 23.1 | 44 | 36 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-16-10 | 1.5/16"X12 | 7/8"X14 | 23.1 | 44 | 36 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-16-12 | 1.5/16"X12 | 1.1/16"X12 | 23.1 | 50 | 36 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-16-20S | 1.5/16"X12 | 1.5/8"X12 | 23 | 41.8 | 50 | 16.8 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-16-24S | 1.5/16"X12 | 1.7/8"X12 | 23 | 43.2 | 60 | 19.7 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-16-32S | 1.5/16"X12 | 2.1/2"X12 | 23 | 49 | 75 | 29.1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-20-12 | 1.5/8"X12 | 1.1/16"X12 | 24.3 | 50 | 46 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-20-16 | 1.5/8"X12 | 1.5/16"X12 | 24.3 | 50 | 46 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-20-24S | 1.5/8"X12 | 1.7/8"X12 | 24.3 | 44.3 | 60 | 19.7 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-20-32S | 1.5/8"X12 | 2.1/2"X12 | 24.3 | 50 | 75 | 29.1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5J-24-20 | 1.7/8"X12 | 1.5/8"X12 | 27.5 | 56 | 50 |
Product Details
High quality hydraulic fitting can satisfy your different needs with
its special quality and features.
1.high quality Zinc plated,Zn-Ni plated,Cr3,Cr6 plated.
2.high precision.all edges without burrs,brake sharp edges.
3.competitive price.
4. MOQ:300PCS
5. Material: iron, carbon steel, stainless steel, other metals
6.Standard / specification: Standard or as per drawing and samples (OEM)
7. Size: as per customers' requests
Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.
Deliver,Shipping And Serving
1. Delivery:As general,we can guarantee the delivery within one month.
2. Port of loading: Ningbo or Shanghai
3. Samples Fee: We can offord the samples fee.
