HYDRAULIC 5BN BSP MALE DOUBLE USE FOR 60° CONE SEAT OR BONDED SEAL / NPT FEMALE
  • Air ProHYDRAULIC 5BN BSP MALE DOUBLE USE FOR 60° CONE SEAT OR BONDED SEAL / NPT FEMALE

HYDRAULIC 5BN BSP MALE DOUBLE USE FOR 60° CONE SEAT OR BONDED SEAL / NPT FEMALE

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials：stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 5BN BSP MALE DOUBLE USE FOR 60° CONE SEAT OR BONDED SEAL / NPT FEMALE

Model:5BN

Send Inquiry

Product Description

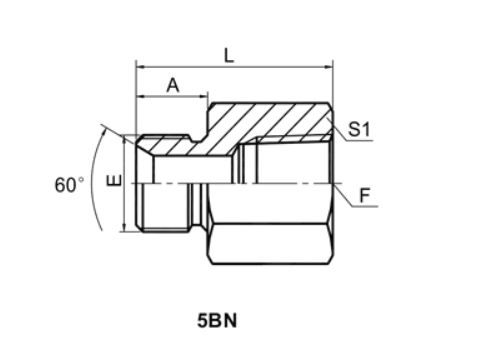

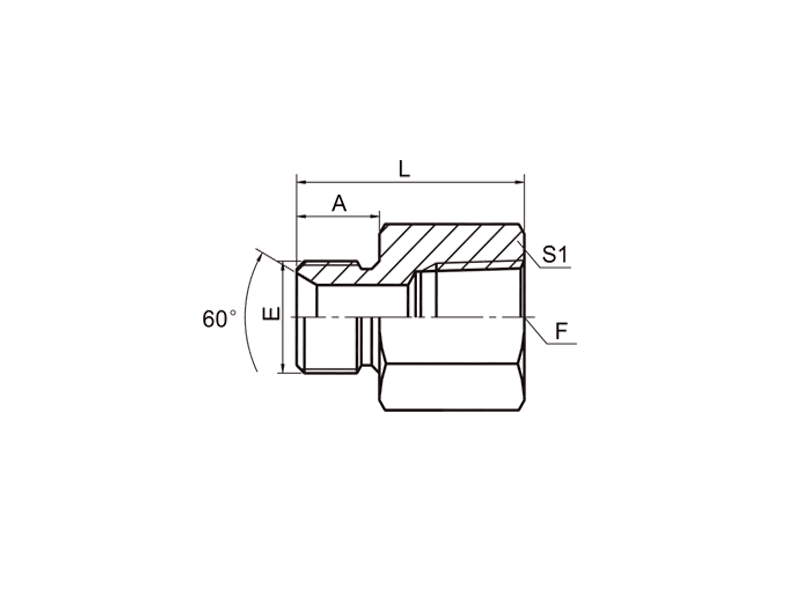

HYDRAULIC 5BN BSP MALE DOUBLE USE FOR 60° CONE SEAT OR BONDED SEAL / NPT FEMALE



PART NO.  THREAD    DIMENSIONS
E F A L S1
5BN-04 G1/4"X19 Z1/4"X18 12 31 19
5BN-06 G3/8"X19 Z3/8"X18 13.5 33 22
5BN-08 G1/2"X14 Z1/2"X14 16 42 30
5BN-12 G3/4"X14 Z3/4"X14 18.5 44.5 36
5BN-16 G1"X11 Z1"X11.5 20.5 52 41
5BN-20 G1.1/4"X11 Z1.1/4"X11.5 20.5 55 50
5BN-24 G1.1/2"X11 Z1.1/2"X11.5 23 60 60
5BN-32 G2"X11 Z2"X11.5 25.5 62 70
