HYDRAULIC 5B-WD BSP MALE CAPTIVE SEAL / BSP FEMALE ISO 1179
  • Air ProHYDRAULIC 5B-WD BSP MALE CAPTIVE SEAL / BSP FEMALE ISO 1179

HYDRAULIC 5B-WD BSP MALE CAPTIVE SEAL / BSP FEMALE ISO 1179

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 5B-WD BSP MALE CAPTIVE SEAL / BSP FEMALE ISO 1179

Model:5B-WD

Send Inquiry

Product Description

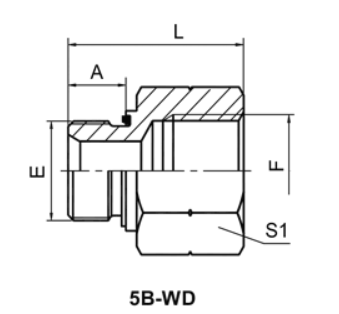

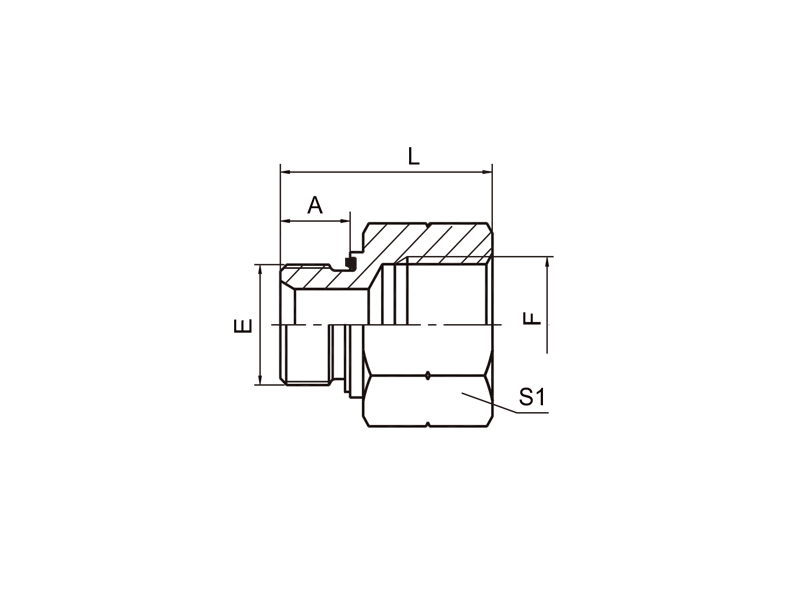

HYDRAULIC 5B-WD BSP MALE CAPTIVE SEAL / BSP FEMALE ISO 1179






PART NO.    THREAD     CAPTIVE     DIMENSIONS
E F E END A L S1
5B-02-04WD G1/8"X28 G1/4"X19 WD-B02 8 30.5 19
5B-02-06WD G1/8"X28 G3/8"X19 WD-B02 8 33.5 22
5B-04-02WD G1/4"X19 G 1/8"X28 WD-B04 12 31.5 19
5B-04-06WD G1/4"X19 G3/8"X19 WD-B04 12 37 22
5B-04-08WD G1/4"X19 G1/2"X14 WD-B04 12 43 27
5B-06-02WD G3/8"X19 G1/8"X28 WD-B06 12 35.5 22
5B-06-04WD G3/8"X19 G1/4"X19 WD-B06 12 37.5 22
5B-06-08WD G3/8"X19 G1/2"X14 WD-B06 12 43.5 27
5B-08-04WD G1/2"X14 G1/4"X19 WD-B08 14 38 27
5B-08-06WD G1/2"X14 G3/8"X19 WD-B08 14 41 27
5B-08-12WD G1/2"X14 G3/4"X14 WD-B08 14 46 36
5B-12-08WD G3/4"X14 G1/2"X14 WD-B12 16 47.5 32
5B-12-16WD G3/4"X14 G1"X11 WD-B12 16 53.5 41
5B-12-20WD G3/4"X14 G1.1/4"X11 WD-B12 16 54.5 50
5B-16-12WD G1"X11 G3/4"X14 WD-B16 18 50.5 41
5B-16-20WD G1"X11 G1.1/4"X11 WD-B16 18 56.5 50
5B-20-16WD G1.1/4"X11 G1"X11 WD-B20 20 57.5 50
5B-20-24WD G1.1/4"X11 G1.1/2"X11 WD-B20 20 59.5 55
5B-20-32WD G1.1/4"X11 G2"X11 WD-B20 20 64 70
5B-24-16WD G1.1/2"X11 G1"X11 WD-B24 22 59.5 55
5B-24-20WD G1.1/2"X11 G1.1/4"X11 WD-B24 22 60 55
5B-24-32WD G1.1/2"X11 G2"X11 WD-B24 22 66 70
