HYDRAULIC 5B BSP MALE DOUBLE USE FOR 60°CONE SEAT OR BONDED SEAL / BSP FEMALE ISO 1179
  • Air ProHYDRAULIC 5B BSP MALE DOUBLE USE FOR 60°CONE SEAT OR BONDED SEAL / BSP FEMALE ISO 1179

HYDRAULIC 5B BSP MALE DOUBLE USE FOR 60°CONE SEAT OR BONDED SEAL / BSP FEMALE ISO 1179

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 5B BSP MALE DOUBLE USE FOR 60°CONE SEAT OR BONDED SEAL / BSP FEMALE ISO 1179

Model:5B

Send Inquiry

Product Description

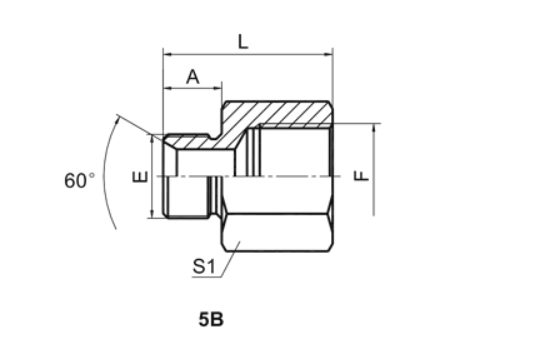

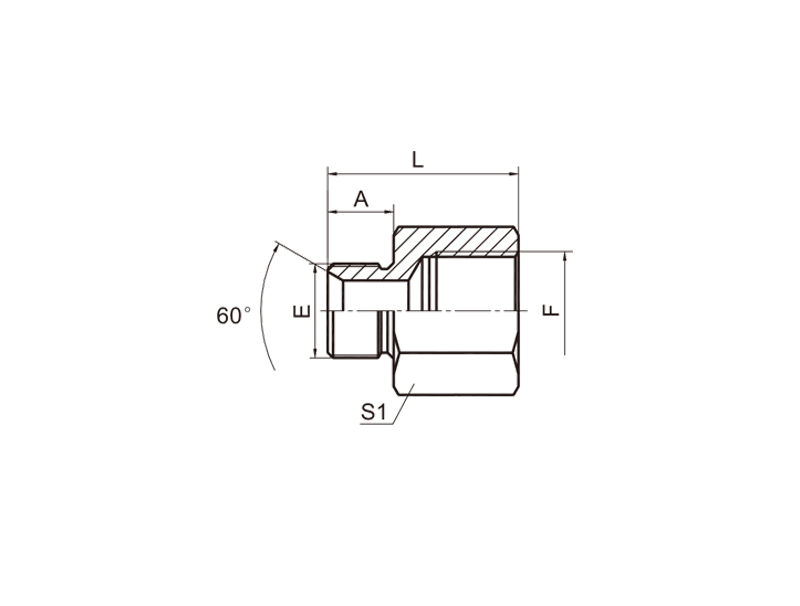

HYDRAULIC 5B BSP MALE DOUBLE USE FOR 60°CONE SEAT OR BONDED SEAL / BSP FEMALE ISO 1179





PART NO.  THREAD    DIMENSIONS
E F A L S1
5B-02-04 G1/8"X28 G1/4"X19 11 29 19
5B-04-02 G1/4"X19 G 1/8"X28 12 28 19
5B-04 G1/4"X19 G1/4"X19 12 33 19
5B-04-06 G1/4"X19 G3/8"X19 12 36 22
5B-06-04 G3/8"X19 G1/4"X19 13.5 33.5 22
5B-06 G3/8"X19 G3/8"X19 13.5 37.5 22
5B-06-08 G3/8"X19 G1/2"X14 13.5 42.5 27
5B-08-06 G1/2"X14 G3/8"X19 16 38 27
5B-08 G1/2"X14 G1/2"X14 16 45 27
5B-08-10 G1/2"X14 G5/8"X14 16 46 30
5B-08-12 G1/2"X14 G3/4"X14 16 44.5 36
5B-10-08 G5/8"X14 G1/2"X14 16 41.5 30
5B-12-08 G3/4"X14 G1/2"X14 18.5 44.5 32
5B-12 G3/4"X14 G3/4"X14 18.5 48 36
5B-12-16 G3/4"X14 G1"X11 18.5 53.5 41
5B-16-12 G1"X11 G3/4"X14 20.5 47.5 41
5B-16 G1"X11 G1"X11 20.5 55.5 41
5B-16-20 G1"X11 G1.1/4"X11 20.5 56.5 50
5B-20-16 G1.1/4"X11 G1"X11 20.5 49 50
5B-20 G1.1/4"X11 G1.1/4"X11 20.5 52.5 50
5B-20-24 G1.1/4"X11 G1.1/2"X11 20.5 57.5 55
5B-24 G1.1/2"X11 G1.1/2"X11 23 58 55
5B-32-24 G2"X11 G1.1/2"X11 26 59.5 70
5B-32 G2"X11 G2"X11 26 63 70
