HYDRAULIC 50091 90° METRIC STANDPIPE STRAIGHT (DIN 2353)
  • Air ProHYDRAULIC 50091 90° METRIC STANDPIPE STRAIGHT (DIN 2353)

HYDRAULIC 50091 90° METRIC STANDPIPE STRAIGHT (DIN 2353)

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 50091 90° METRIC STANDPIPE STRAIGHT (DIN 2353)

Model:50091

Send Inquiry

Product Description

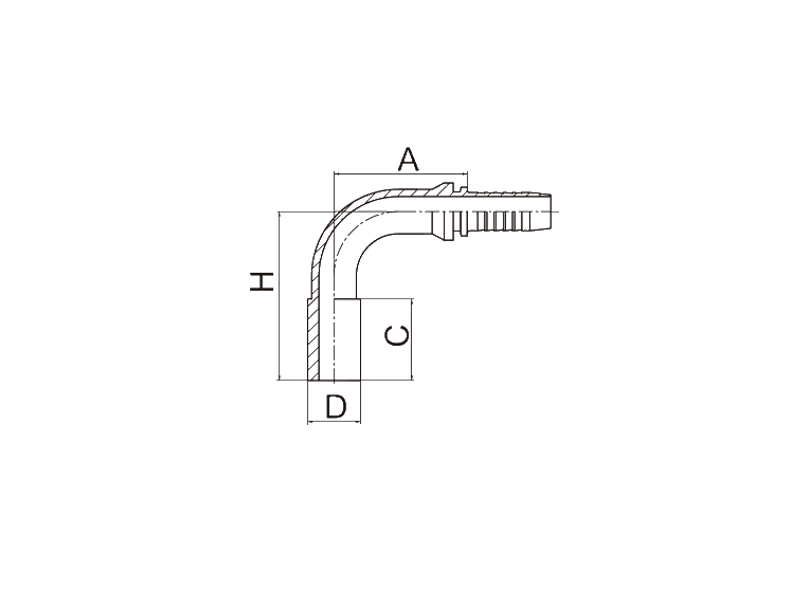

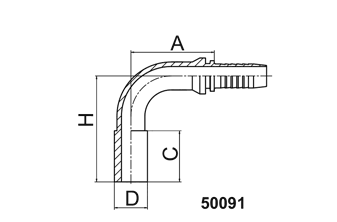

HYDRAULIC 50091 90° METRIC STANDPIPE STRAIGHT (DIN 2353)


PART NO. TUBEO.D.  HOSE BORE   DIMENSIONS NOTE
DN DASH A C H
50091-06-03 6 5 03 26.5 22 45 Light Series
50091-06-04 6 6 04 30 22 48
50091-08-05 8 8 05 34 24 55.5
50091-08-06 8 10 06 35.8 24 57.8
50091-10-05 10 8 05 34 23 53
50091-10-06 10 10 06 35.3 23 55.3
50091-12-06 12 10 06 35.3 23 59.8
50091-12-08 12 12 08 41 23 67
50091-15-06 15 10 06 35.8 25 59.8
50091-15-08 15 12 08 41 25 65
50091-18-08 18 12 08 41 26 68.5
50091-18-10 18 16 10 56.5 26 73
50091-22-10 22 16 10 56.5 28 76.5
50091-22-12 22 20 12 65.5 28 86
50091-22-16 22 25 16 76.7 28 91.5
50091-28-16 28 25 16 76.7 30 95.5
50091-35-20 35 32 20 91.5 36 112.5
50091-08-04 8 6 04 30 24 52.5 Heavy Series
50091-10-04 10 6 04 30 26 53
50091-12-04 12 6 04 30 26 57.5
50091-12-05 12 B 05 33 26 60.5
50091-14-06 14 10 06 35.3 29 63.8
50091-14-08 14 12 08 41 29 69
50091-14-12 14 20 12 66.2 29 83
50091-16-08 16 12 08 42 30 73
50091-16-10 16 16 10 56.5 30 77.5
50091-20-10 20 16 10 56.5 36 84.5
50091-20-12 20 20 12 65.5 36 95.5
50091-25-12 25 20 12 65.5 40 98
50091-25-16 25 25 16 76.7 40 103.5
50091-30-16 30 25 16 78 40 109.5
50091-30-20 30 32 20 91.5 44 120.5
50091-38-16 38 25 16 76.7 50 115.5
50091-38-20 38 32 20 91.5 50 126.5

NOTE:

1.For use with braided hoses.

2.If use with spiral hoses.hose fitting series number is 50092-XX-XX.
