HYDRAULIC 50041 45° METRIC STANDPIPE STRAIGHT
  • Air ProHYDRAULIC 50041 45° METRIC STANDPIPE STRAIGHT

HYDRAULIC 50041 45° METRIC STANDPIPE STRAIGHT

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 50041 45° METRIC STANDPIPE STRAIGHT

Model:50041

Send Inquiry

Product Description

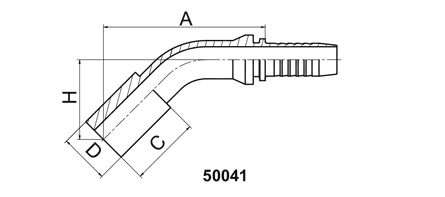

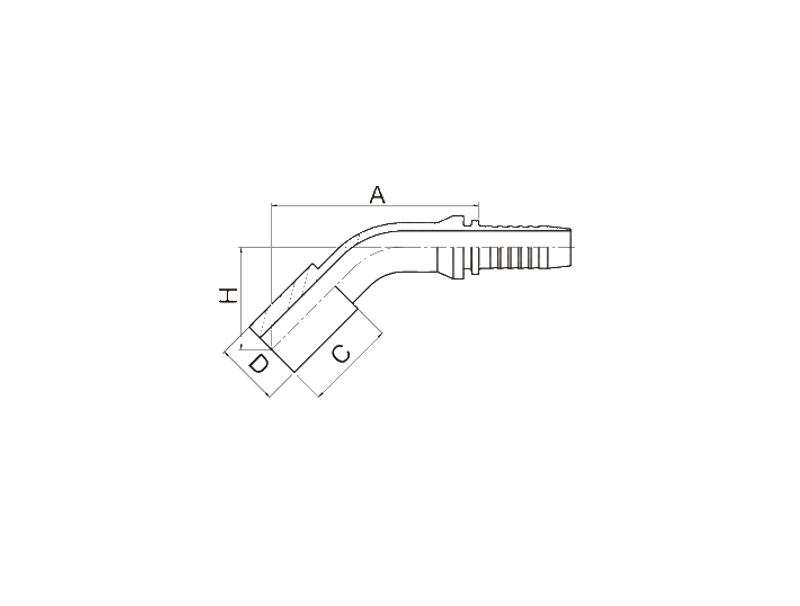

HYDRAULIC 50041 45° METRIC STANDPIPE STRAIGHT




PART NO. TUBEO.D.  HOSE BORE  DIMENSIONS NOTE
DN DASH A C H
50041-06-03 6 5 03 47.8 22 27.5 Light Series
50041-06-04 6 6 04 52.2 22 30.1
50041-08-05 8 8 05 55.7 24 32.4
50041-08-06 8 10 06 57.9 24 33.1
50041-10-05 10 8 05 54 23 30.6
50041-10-06 10 10 06 56.1 23 31.3
50041-12-06 12 10 06 58.5 23 34.5
50041-12-08 12 12 08 72.4 23 37.4
50041-15-06 15 10 06 59.3 25 34.5
50041-15-08 15 12 08 70.6 25 35.7
50041-18-08 18 12 08 73.4 26 38.5
50041-18-10 18 16 10 84.6 26 39.8
50041-22-10 22 16 10 87.1 28 42.3
50041-22-12 22 20 12 39.3 28 45.9
50041-22-16 22 24 16 100.9 28 46.7
50041-28-16 28 24 16 103.7 30 49.5
50041-35-20 35 32 20 118.5 36 57.8
50041-08-04 8 6 04 53.6 24 31.5 Heavy Series
50041-10-04 10 6 04 54 26 31.9
50041-12-04 12 6 04 57.1 26 35.1
50041-12-05 12 8 05 59.2 26+ 35.9
50041-14-06 14 10 06 61.6 29 37.3
50041-14-08 14 12 08 73.8 29 38.8
50041-14-12 14 20 12 91.9 29 43.8
50041-16-08 16 12 08 76.6 30 41.7
50041-16-10 16 16 10 87.8 30 43
50041-20-10 20 16 10 92.8 36 48
50041-20-12 20 20 12 110.7 36 52.6
50041-25-12 25 20 12 101.8 40 54.5
50041-25-16 25 25 16 109.4 40 55.2
50041-30-16 30 25 16 113.6 44 59.4
50041-30-20 30 32 20 124.2 44 63.5
50041-38-16 38 25 16 117.9 50 63.6
50041-38-20 38 32 20 128.4 50 67.7

NOTE:

1.For use with braided hoses.

2.If use with spiral hoses.hose fitting series number is 50042-XX-XX.
