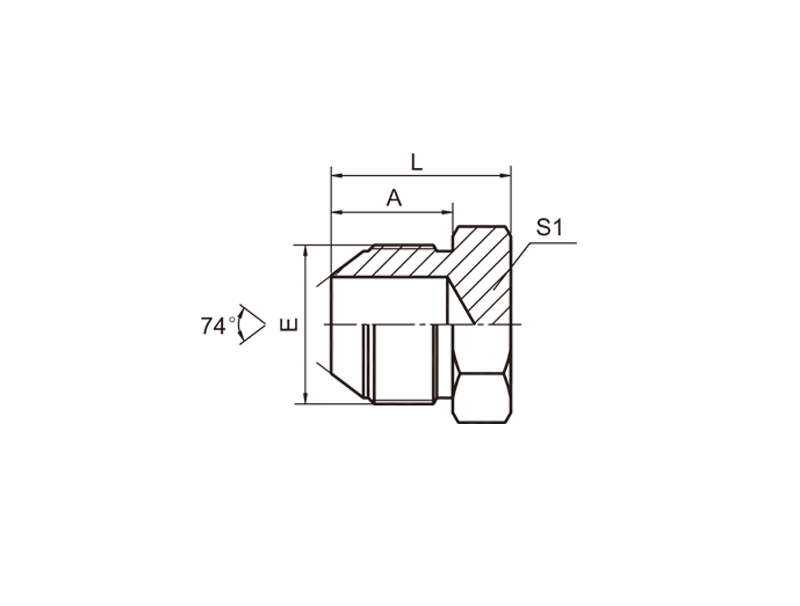

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials:stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 4Q METRIC MALE 74°CONE PLUG
PART NO. | THREAD | TUBE O.D. | DIMENSIONS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
E | D | A | L | S1 | S2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
4Q-10 | M10X1 | 5 | 12 | 18 | 12 | 14 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
4Q-12 | M12X1.5 | 6 | 15.7 | 21.5 | 14 | 14 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
4Q-14 | M14X1.5 | 8 | 17 | 23 | 17 | 17 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
4Q-16 | M16X1.5 | 10 | 18 | 24 | 17 | 19 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
4Q-18 | M18X1.5 | 12 | 18 | 24 | 19 | 22 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
4Q-22 | M22X1.5 | 14 | 19.5 | 27.5 | 24 | 27 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
4Q-24 | M24X1.5 | 16 | 20 | 30 | 27 | 30 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
4Q-27 | M27X1.5 | 18 | 20 | 30 | 30 | 32 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
4Q-30 | M30X1.5 | 20 | 23 | 34 | 32 | 36 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
4Q-30E | M30X2 | 20 | 26 | 37 | 32 | 36 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
4Q-33 | M33X2 | 22 | 26 | 37 | 36 | 38 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
4Q-36 | M36X2 | 25 | 26 | 38 | 38 | 41 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
4Q-39 | M39X2 | 28 | 26 | 39 | 41 | 46 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
4Q-42 | M42X2 | 32 | 28.5 | 41.5 | 46 | 50 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
4Q-45 | M45X2 | 34 | 28.5 | 41.5 | 46 | 55 |

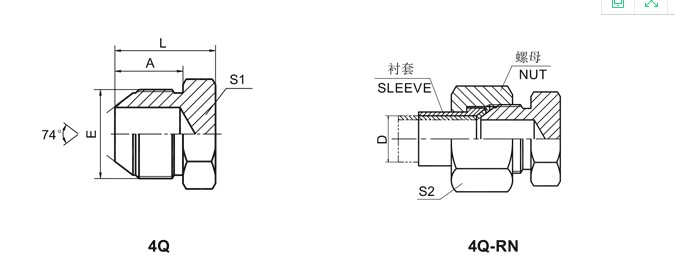

Note:In case if you are interested to order the adapter in complete set with sleeve and nut , it is necessary to insert suffix "RN" after our part no.,for example 4Q-18RN, The sleeve NO. is NB500-Q and the nut NO. is NB200-Q。
