HYDRAULIC 4P SAE MALE 90° CONE PLUG SAE J513
  • Air ProHYDRAULIC 4P SAE MALE 90° CONE PLUG SAE J513

HYDRAULIC 4P SAE MALE 90° CONE PLUG SAE J513

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials：stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 4P SAE MALE 90° CONE PLUG SAE J513

Model:4P

Send Inquiry

Product Description

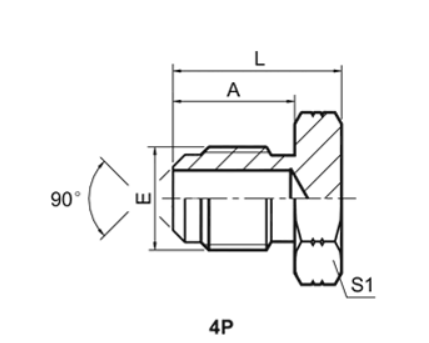

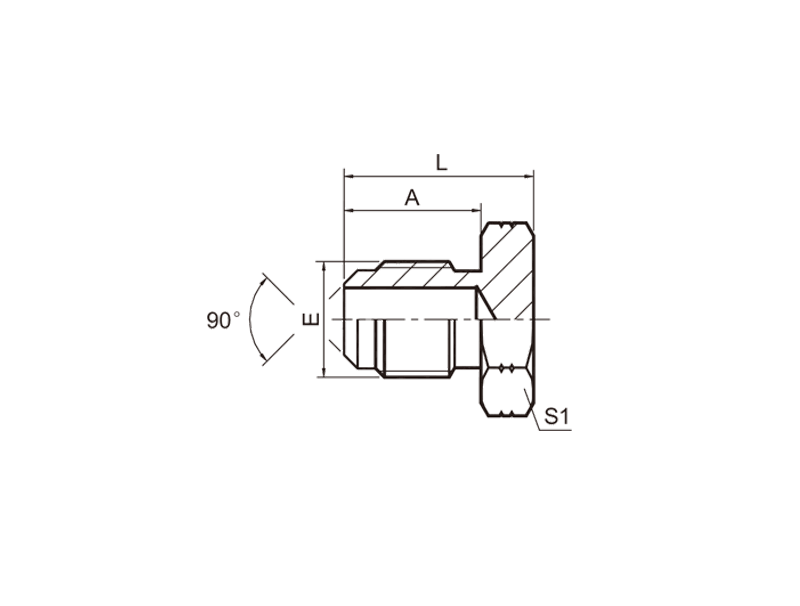

HYDRAULIC 4P SAE MALE 90° CONE PLUG SAE J513




 PART NO.    THREAD     DIMENSIONS
E A L S1
4P-04 7/16"X20 12.7 18.5 14
4P-05 1/2"X20 14.2 20 14
4P-06 5/8"X18 15.7 22 17
4P-08 3/4"X16 19 27 22
4P-10 7/8"X14 22.4 30.5 24
4P-12 1.1/16"X14 25.4 35.5 30
