We are the manufacture that can offer more than 10,000 items like high pressure hydraulic hose fittings, hose assembly and adaptors. The main hydraulic fitting material is carbon steel. Alternative materials including free cutting steel, stainless steel, brass, aluminum alloy and others are available. And we can supply all kinds of forging parts make special by customer's requirement.

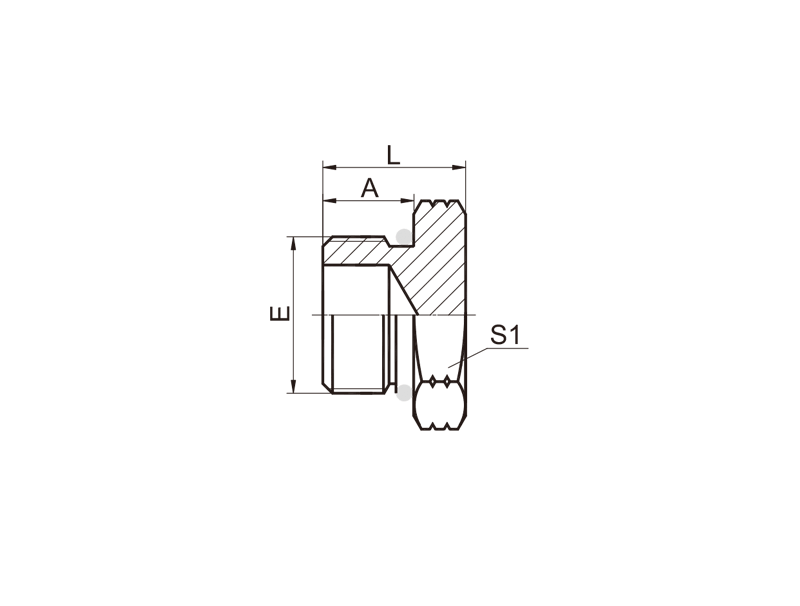

Hydraulic plug SAE Threads
SAE – Society of Automotive Engineers
These fittings are commonly used in refrigeration, automotive and low pressure applications.
|
PART NO. |
THREAD |
O-RING |
DIMENSIONS |
||
|
E |
E END |
A |
L |
S1 |
|
|
4O-02 |
5/16"X24 |
6.07X1.63 |
7.54 |
14.6 |
12 |
|
4O-03 |
3/8"X24 |
7.65X1.63 |
7.54 |
14.6 |
14 |
|
4O-04 |
7/16"X20 |
8.92X1.83 |
9.1 |
16 |
14 |
|
4O-05 |
1/2"X20 |
10.52X1.83 |
9.1 |
16 |
17 |
|
4O-06 |
9/16"X18 |
11.89X1.98 |
9.9 |
17.5 |
17 |
|
4O-08 |
3/4"X16 |
16.36X2.21 |
11.1 |
19.5 |
22 |
|
4O-10 |
7/8"X14 |
19.18X2.46 |
12.7 |
23 |
27 |
|
4O-12 |
1.1/16"X12 |
23.47X2.95 |
15.1 |
26.5 |
32 |
|
4O-14 |
1.3/16"X12 |
26.62X2.95 |
15.1 |
27 |
36 |
|
4O-16 |
1.5/16"X12 |
29.74X2.95 |
15.1 |
27.5 |
38 |
|
4O-20 |
1.5/8"X12 |
37.46X3.00 |
15.1 |
30 |
50 |
|
4O-24 |
1.7/8"X12 |
43.69X3.00 |
15.1 |
30 |
55 |
|
4O-32 |
2.1/2"X12 |
59.36X3.00 |
15.1 |
32 |
70 |
High quality hydraulic fitting can satisfy your different needs with
its special quality and features.
1.high quality Zinc plated,Zn-Ni plated,Cr3,Cr6 plated.
2.high precision.all edges without burrs,brake sharp edges.
3.competitive price.
4. MOQ:300PCS
5. Material: iron, carbon steel, stainless steel, other metals
6.Standard / specification: Standard or as per drawing and samples (OEM)
7. Size: as per customers' requests
Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.
1. Delivery:As general,we can guarantee the delivery within one month.
2. Port of loading: Ningbo or Shanghai
3. Samples Fee: We can offord the samples fee.
