HYDRAULIC 4FL-M SAE FLANGE
  • Air ProHYDRAULIC 4FL-M SAE FLANGE

HYDRAULIC 4FL-M SAE FLANGE

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials：stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 4FL-M SAE FLANGE

Model:4FL-M

Send Inquiry

Product Description

HYDRAULIC 4FL-M SAE FLANGE

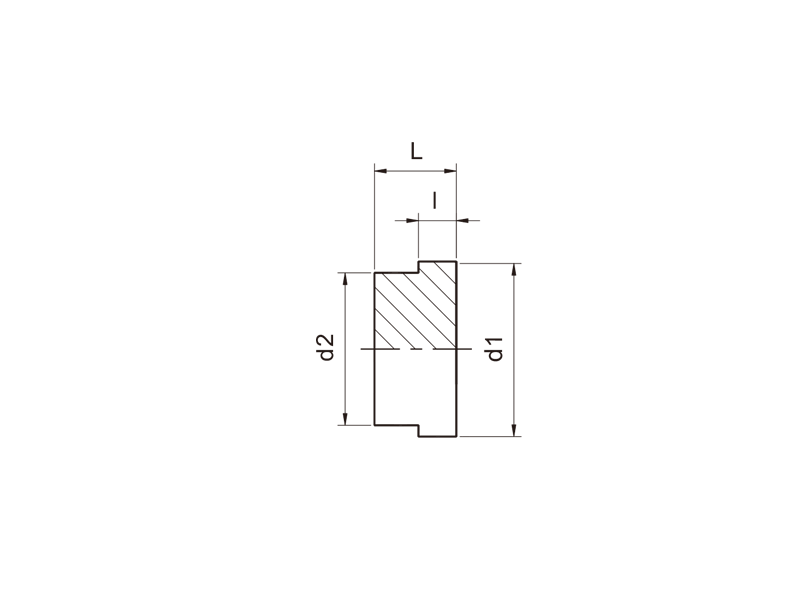

 PART NO. FLANGE SIZE       DIMENSIONS  MPa
d1 d2 L l
3000PSI
4FL-08M 1/2" 30.2 24 16 6.8 34.5
4FL-12M 3/4" 38.1 31.5 17 6.8
4FL-16M 1" 44.4 38 17 8
4FL-20M 1.1/4" 50.8 43 17 8 27.6
4FL-24M 1.1/2" 60.3 50 19 8 20.7
4FL-32M 2" 71.4 62 19 9.6
4FL-40M 2.1/2" 84.1 74 40 9.6 17.2
4FL-48M 3" 101.6 90 45 9.6 13.8
4FL-56M 3.1/2" 114.3 102 30 11.3 3.4
4FL-64M 4" 127 114 36 11.3
4FL-80M 5" 152.4 140 45 11.3
6000PSI
4FS-08M 1/2" 31.8 24 18 7.8 42
4FS-12M 3/4" 41.3 32 18 8.8
4FS-16M 1" 47.6 38 18 9.5
4FS-20M 1.1/4" 54 44 18 10.3
4FS-24M 1.1/2" 63.5 51 20 12.6
4FS-32M 2" 79.4 67 30 12.6
