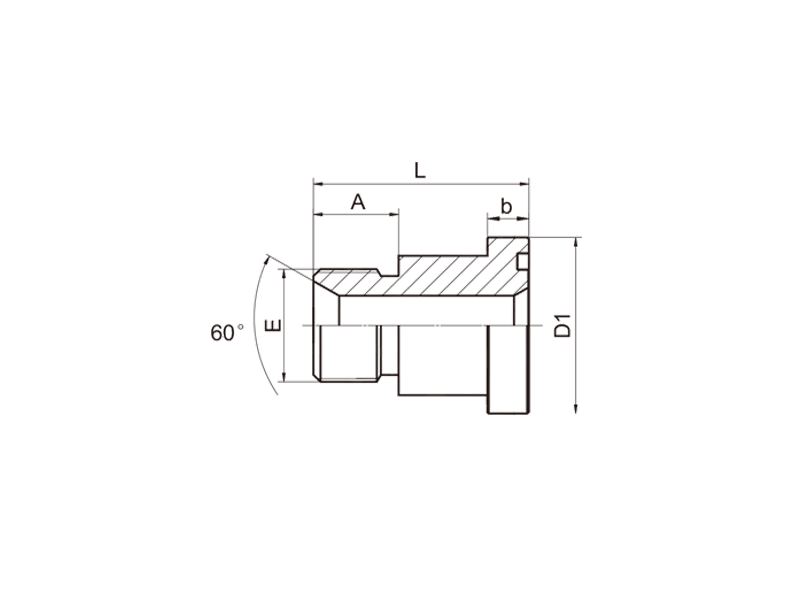

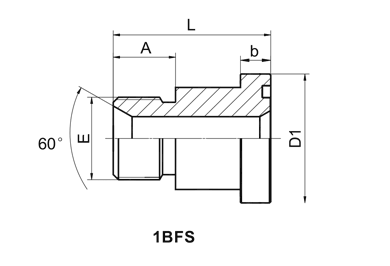

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials:stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 1BFS BSP MALE 60°CONE SEAT/SAE FLANGE 6000PSI
PART NO. | THREAD | DIMENSIONS | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
E | FLANGE SIZE | O RING | b | D1 | L | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1BFS-08 | G1/2"X14 | 1/2" | O210 | 7.75 | 31.7 | 43 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1BFS-12 | G3/4"X14 | 3/4" | O214 | 8.76 | 41.3 | 53.5 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1BFS-16 | G1"X11 | 1" | O219 | 9.53 | 47.6 | 60.5 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1BFS-20 | G1.1/4"X11 | 1.1/4" | O222 | 10.29 | 54 | 65.5 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1BFS-24 | G1.1/2"X11 | 1.1/2" | O225 | 12.57 | 63.5 | 72.5 |
