HYDRAULIC 1CFL9 90°ELBOW METRIC MALE BITE TYPE / L-SERIES FLANGE ISO 6162-1
  • Air ProHYDRAULIC 1CFL9 90°ELBOW METRIC MALE BITE TYPE / L-SERIES FLANGE ISO 6162-1

HYDRAULIC 1CFL9 90°ELBOW METRIC MALE BITE TYPE / L-SERIES FLANGE ISO 6162-1

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 1CFL9 90°ELBOW METRIC MALE BITE TYPE / L-SERIES FLANGE ISO 6162-1

Model:1CFL9

Send Inquiry

Product Description

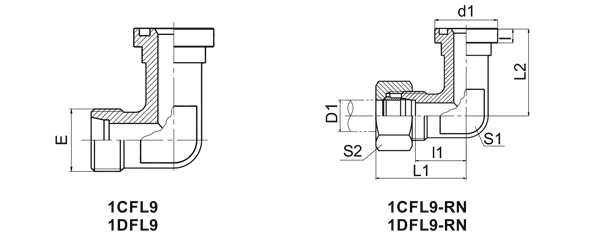

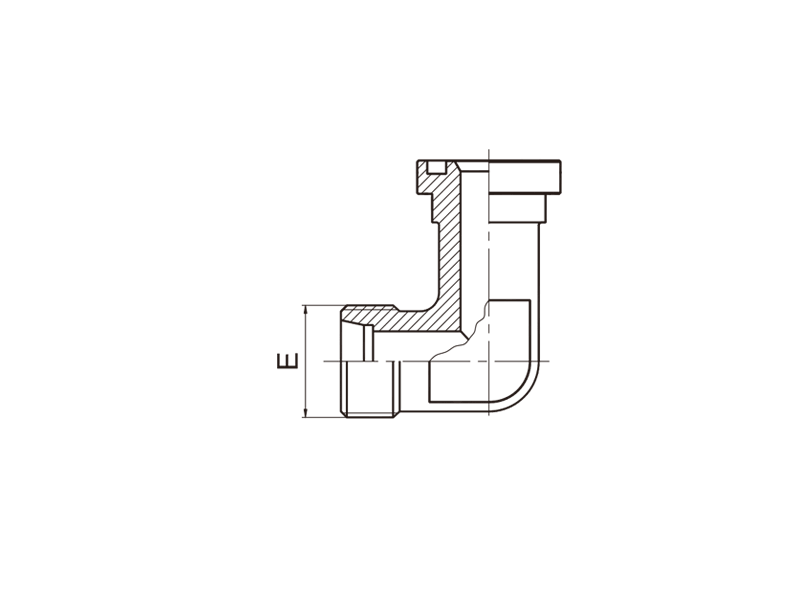

HYDRAULIC 1CFL9 90°ELBOW METRIC MALE BITE TYPE / L-SERIES FLANGE ISO 6162-1



 PART NO. THREAD FLANGE SIZE TUBE O.D.  O-RING  DIMENSIONS MPa
d1 l l1 L1 L2 S1 S2
1CFL9-22-08 M22X1.5 1/2" 15 O210 30.2 6.7 29 44 36 24 27
31.5
LIGINT SERIES L
1CFL9-26-12 M26X1.5 3/4" 18 O214 38.1 6.7 31.5 48 42 30 32
1CFL9-30-12 M30X2 3/4" 22 O214 38.1 6.7 33.5 50 42 30 36
16
LIGINT SERIES L
35
HEAVY SERIES S
1CFL9-36-16 M36X2 1" 28 O219 44.4 8 36.5 53 45 36 41
1CFL9-45-20 M45X2 1.1/4" 35 O222 50.8 8 46.5 68 50 41 50
1CFL9-52-24 M52X2 1.1/2" 42 O225 60.3 8 47 70 55 50 60
1DFL9-24-08 M24X1.5 1/2" 16 O210 30.2 6.7 29.5 48 36 24 30
1DFL9-30-12 M30X2 3/4" 20 O214 38.1 6.7 32.5 54 42 30 36
1DFL9-36-12 M36X2 3/4" 25 O214 38.1 6.7 33 57 42 30 46
1DFL9-42-16 M42X2 1" 30 O219 44.4 8 36.5 63 45 36 50
1DFL9-36-20 M36X2 1.1/4" 25 O222 50.8 8 43 67 50 41 46
28
HEAVY SERIES S
1DFL9-42-20 M42X2 1.1/4" 30 O222 50.8 8 43.5 70 50 41 50
1DFL9-52-20 M52X2 1.1/4" 38 O222 50.8 8 43 74 50 41 60
1DFL9-52-24 M52X2 1.1/2" 38 O225 60.3 8 48 79 55 50 60 21HEAVY SERIES S
Note:In case if you are interested to order the adapter in complete set with cutting ring and nut , it is necessary to insert suffix "RN" after our part NO.,for example 1DFL9-52-24RN.
