HYDRAULIC 1DFS METRIC MALE BITE TYPE / H-SERIES FLANGE ISO 6162-2
  • Air ProHYDRAULIC 1DFS METRIC MALE BITE TYPE / H-SERIES FLANGE ISO 6162-2

HYDRAULIC 1DFS METRIC MALE BITE TYPE / H-SERIES FLANGE ISO 6162-2

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 1DFS METRIC MALE BITE TYPE / H-SERIES FLANGE ISO 6162-2

Model:1DFS

Send Inquiry

Product Description

HYDRAULIC 1DFS METRIC MALE BITE TYPE / H-SERIES FLANGE ISO 6162-2

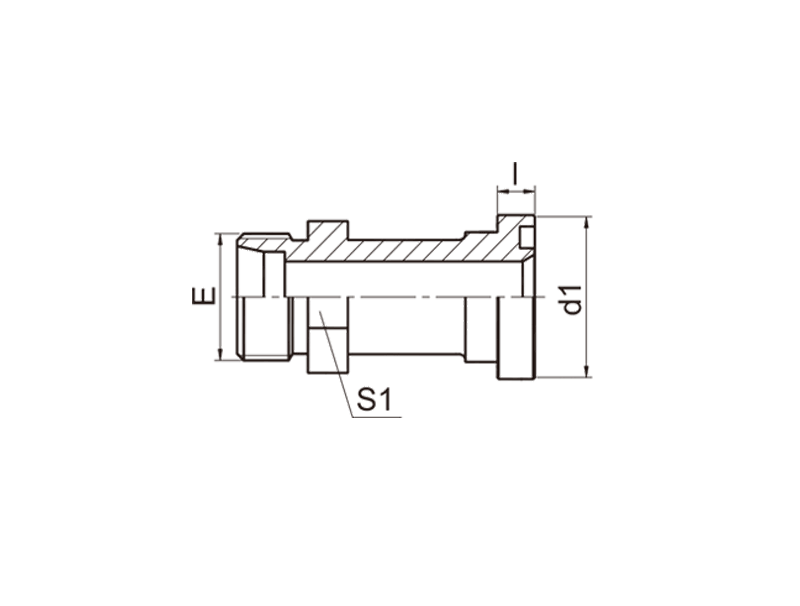

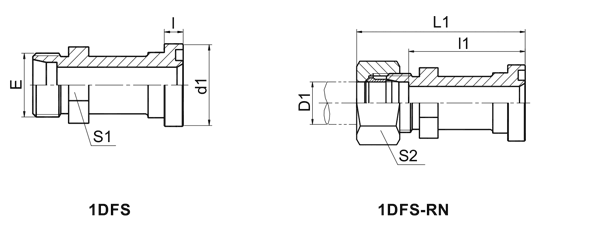

PART NO. THREAD E FLANGE SIZE  O-RING     DIMENSIONS MPa
TUBE O.D. d1 l l1 L1 S1 S2
1DFS-24-08 M24X1.5 1/2" 16 O210 31.7 7.8 44.5 63 24 30 40
HEAVY SERIES S
1DFS-24-12 M24X1.5 3/4" 16 O214 41.3 8.8 50.5 69 30 30
1DFS-30-12 M30X2 3/4" 20 O214 41.3 8.8 50.5 72 30 36
1DFS-36-12 M36X2 3/4" 25 O214 41.3 8.8 51 75 30 46
1DFS-36-16 M36X2 1" 25 O219 47.6 9.5 60 81 36 46
1DFS-42-16 M42X2 1" 30 O219 47.6 9.5 60.5 87 36 50
1DFS-42-20 M42X2 1.1/4" 30 O222 54 10.3 65.5 92 41 50
1DFS-52-20 M52X2 1.1/4" 38 O222 54 10.3 67 98 46 60 31.5
HEAVY SERIESS
1DFS-52-24 M52X2 1.1/2" 38 O225 63.5 12.6 73 104 46 60


Note: In case if you are interested to order the adaptr in complete set with cutting ring and nut,it is necessary to insert suffix“RN”after our part NO.,for example 1DFL-52-24RN.
