HYDRAULIC 4B-WD BSP MALE CAPTIVE SEAL PLUG
  • Air ProHYDRAULIC 4B-WD BSP MALE CAPTIVE SEAL PLUG

HYDRAULIC 4B-WD BSP MALE CAPTIVE SEAL PLUG

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials：stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 4B-WD BSP MALE CAPTIVE SEAL PLUG

Model:4B-WD

Send Inquiry

Product Description

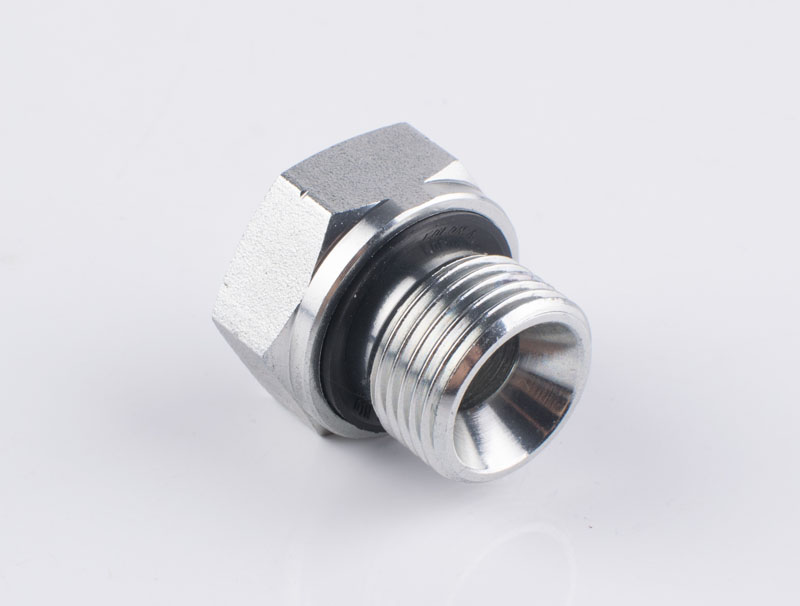

HYDRAULIC 4B-WD BSP MALE CAPTIVE SEAL PLUG

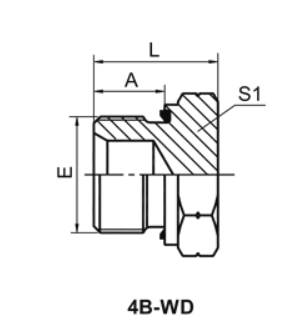

   THREAD   CAPTIVE DIMENSIONS
PART NO. E E END A L S1
4B-02WD G1/8"X28 WD-B02 8 15.5 14
4B-04WD G1/4"X19 WD-B04 12 19.6 19
4B-06WD G3/8"X19 WD-B06 12 22.5 22
4B-08WD G1/2"X14 WD-B08 14 25 27
4B-12WD G3/4"X14 WD-B12 16 29 32
4B-16WD G1"X11 WD-B16 18 35 41
4B-20WD G1.1/4"X11 WD-B20 20 37 50
4B-24WD G1.1/2"X11 WD-B24 22 40 55
