Hydraulic JIC female is the Society of Automotive Engineers (SAE) specifies a 37° angle flare or seat be used with high pressure hydraulic tubing. These are commonly called JIC couplings. The JIC 37° flare male will mate with a JIC female only.* The JIC male has straight threads and a 37° flare seat. The JIC female has straight threads and a 37° flare seat. The seal is made on the 37° flare seat. Some sizes have the same threads as the SAE 45° flare. Carefully measure the seat angle to differentiate.
Because
connectors and ports have many applications in fluid piping systems, you need
to correctly identify them before adding or replacing them on a tube or hose,
in your specific application.
Manufacturers use identifiers such as ASME B1 .1 and ISO 261, to classify the
main thread characteristics: pitch, angle, diameter, and form. Some
organizations that are developing these, are the International Organization for
Standardization, SAE International, British Association, and Deutsches Institut
für Normung, and the American Society of Manufacturing Engineers, American
National Standards Institute.
|

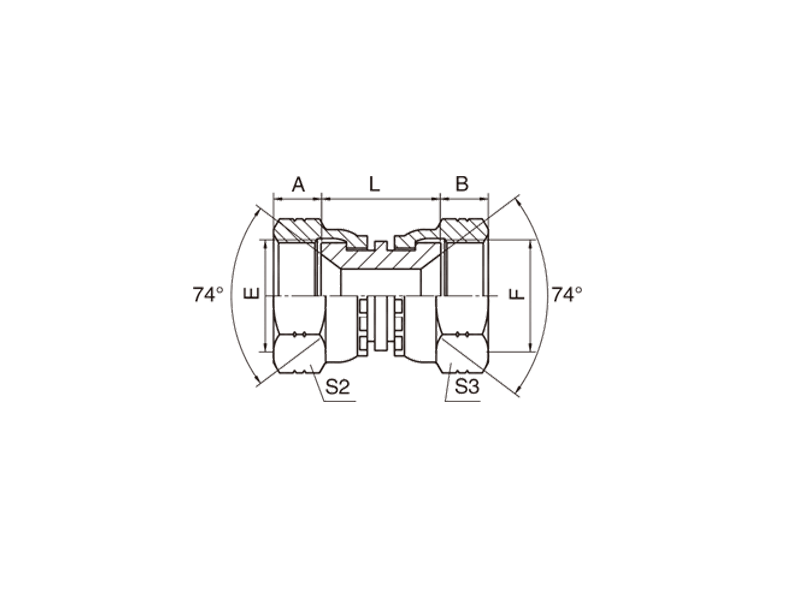

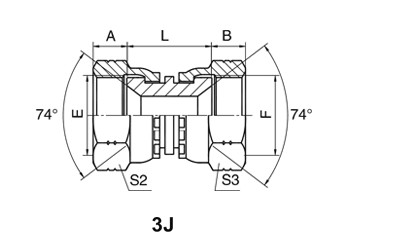

PART NO. |
THREAD |
DIMENSIONS |
|||||
|
E |
F |
A |
B |
L |
S2 |
S3 |
|
|
3J-04 |
7/16"X20 |
7/16"X20 |
9 |
9 |
19 |
15 |
15 |
|
3J-04-05 |
7/16"X20 |
1/2"X20 |
9 |
9.5 |
20.5 |
15 |
17 |
|
3J-04-06 |
7/16"X20 |
9/16"X18 |
9 |
10.5 |
20.5 |
15 |
19 |
|
3J-05 |
1/2"X20 |
1/2"X20 |
9.5 |
9.5 |
21 |
17 |
17 |
|
3J-05-06 |
1/2"X20 |
9/16"X18 |
9.5 |
10.5 |
21 |
17 |
19 |
|
3J-06 |
9/16"X18 |
9/16"X18 |
10.5 |
10.5 |
21 |
19 |
19 |
|
3J-06-08 |
9/16"X18 |
3/4"X16 |
10.5 |
11 |
23 |
19 |
24 |
|
3J-08 |
3/4"X16 |
3/4"X16 |
11 |
11 |
26 |
24 |
24 |
|
3J-08-10 |
3/4"X16 |
7/8"X14 |
11 |
13 |
26.5 |
24 |
27 |
|
3J-08-12 |
3/4"X16 |
1.1/16"X12 |
11 |
15 |
27 |
24 |
32 |
|
3J-10 |
7/8"X14 |
7/8"X14 |
13 |
13 |
27 |
27 |
27 |
|
3J-10-12 |
7/8"X14 |
1.1/16"X12 |
13 |
15 |
28 |
27 |
32 |
|
3J-12 |
1.1/16"X12 |
1.1/16"X12 |
15 |
15 |
29 |
32 |
32 |
|
3J-12-14 |
1.1/16"X12 |
1.3/16"X12 |
15 |
15 |
29 |
32 |
36 |
|
3J-12-16 |
1.1/16"X12 |
1.5/16"X12 |
15 |
16 |
29 |
32 |
41 |
|
3J-16 |
1.5/16"X12 |
1.5/16"X12 |
16 |
16 |
29 |
41 |
41 |
|
3J-20 |
1.5/8"X12 |
1.5/8"X12 |
17 |
17 |
33 |
50 |
50 |
|
3J-24 |
1.7/8"X12 |
1.7/8"X12 |
20 |
20 |
35.5 |
55 |
55 |
|
3J-32 |
2.1/2"X12 |
2.1/2"X12 |
23.5 |
23.5 |
37 |
75 |
75 |
High quality hydraulic fitting can satisfy your different needs with
its special quality and features.
1.high quality Zinc plated,Zn-Ni plated,Cr3,Cr6 plated.
2.high precision.all edges without burrs,brake sharp edges.
3.competitive price.
4. MOQ:300PCS
5. Material: iron, carbon steel, stainless steel, other metals
6.Standard / specification: Standard or as per drawing and samples (OEM)
7. Size: as per customers' requests
Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.
1. Delivery:As general,we can guarantee the delivery within one month.
2. Port of loading: Ningbo or Shanghai
3. Samples Fee: We can offord the samples fee.
