HYDRAULIC  2WE BUTT-WELD TUBE/METRIC FEMALE O-RING
  • Air ProHYDRAULIC  2WE BUTT-WELD TUBE/METRIC FEMALE O-RING

HYDRAULIC 2WE BUTT-WELD TUBE/METRIC FEMALE O-RING

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 2WE BUTT-WELD TUBE/METRIC FEMALE O-RING

Model:2WE

Send Inquiry

Product Description

HYDRAULIC  2WE BUTT-WELD TUBE/METRIC FEMALE O-RING

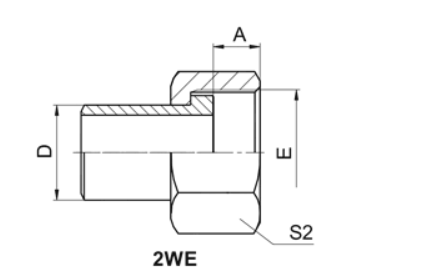

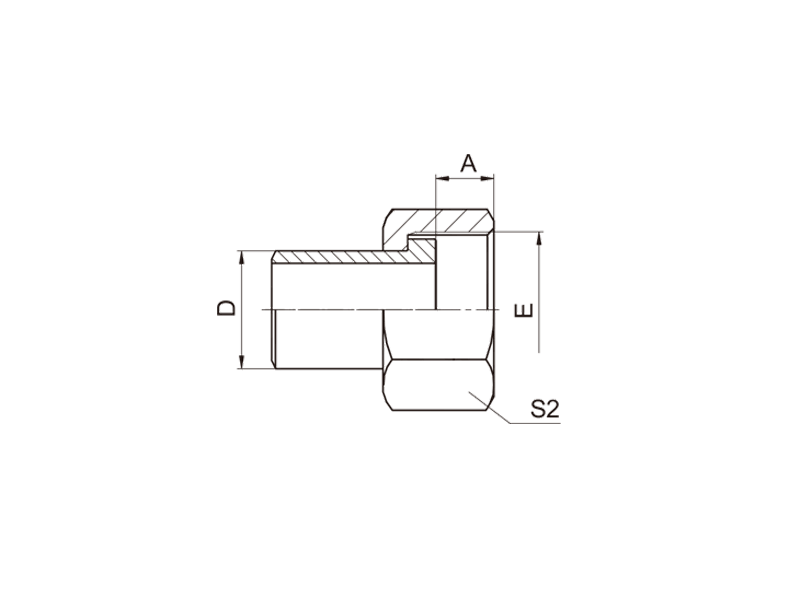

PART NO.  THREAD  TUBE O.D.    DIMENSIONS
E A D S2
2WE-06-12 M12X1.25 6 8 6 14
2WE-08-14 M14X1.5 8 8.5 8 17
2WE-10-16 M16X1.5 10 8.5 10 19
2WE-12-18 M18X1.5 12 8.5 12 22
2WE-14-22 M22X1.5 14 10 14 27
2WE-18-27 M27X1.5 18 10 18 32
2WE-22-30 M30X1.5 22 11 22 36
2WE-28-36 M36X2 28 13 28 41
2WE-30-39 M39X2 30 13 30 46
2WE-34-42 M42X2 34 15 34 50
2WE-38-45 M45X2 38 15 38 55
2WE-42-52 M52X2 42 17 42 60
2WE-50-60 M60X2 50 20 50 70
2WE-52-64 M64X2 52 23 52 75
