The Hydraulic connectors come in a variety of shapes such as straight, elbow (at varying angles), and tee. Other ways to connect hydraulic hoses include hydraulic quick couplers, as well as through some hydraulic hose adapters and plugs. Products differ by hydraulic hose ID, Hydraulic fitting connection type, fitting shape and other considerations.
Japanese Industrial Standard JIS 300 Flare(Hydraulic connectors)
The male half has a 30° seat with a straight thread, while the female has a 300 seat with a straight thread as well. This connection and the 37° Flare are alike, however it's 30° seat and BSPP-like thread dimensions make it different from the American 37° Flare.
JIS TAPERED PIPE THREAD
The hydraulic connectors of Japanese tapered
pipe thread connector is identical to and interchangeable with the BSPT
(tapered) connector. The Japanese male thread does not have a 30° Flare, and
will not mate with the BSPP female swivel with conical seat.
The seal on the Japanese tapered pipe threanector is made on the threads.
Use of a thread sealant is recommended.
Thread form per JIS B 02d con03 (identical to BSPT)

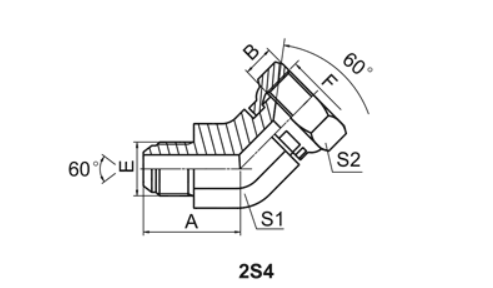

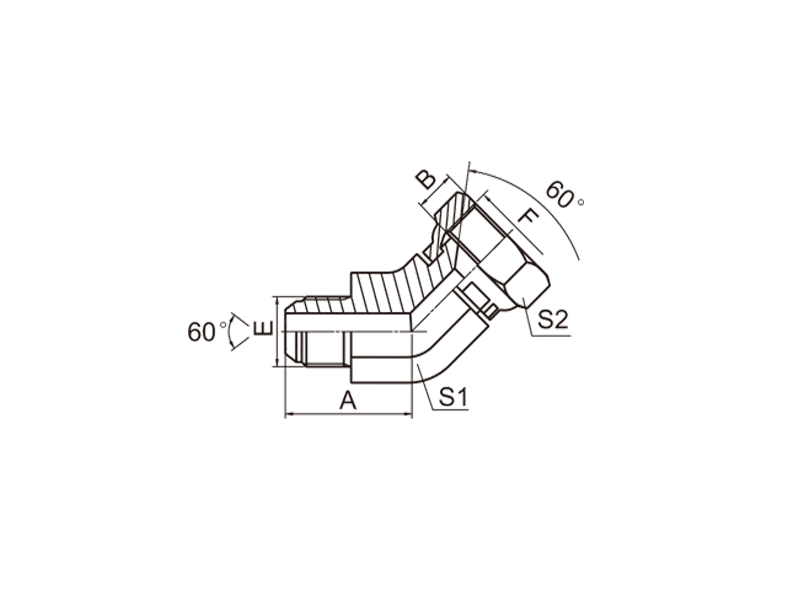

| PART NO. | THREAD | DIMENSIONS | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| E | F | A | B | S1 | S2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2S4-02 | G1/8"X28 | G1/8"X28 | 19 | 6.5 | 11 | 14 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2S4-04 | G1/4"X19 | G1/4"X19 | 24 | 8 | 14 | 19 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2S4-04-06 | G1/4"X19 | G3/8"X19 | 24 | 9 | 14 | 22 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2S4-06 | G3/8"X19 | G3/8"X19 | 26 | 9 | 16 | 22 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2S4-06-04 | G3/8"X19 | G1/4"X19 | 26 | 8 | 16 | 19 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2S4-06-08 | G3/8"X19 | G1/2"X14 | 26 | 12 | 16 | 27 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2S4-08 | G1/2"X14 | G1/2"X14 | 30.5 | 12 | 22 | 27 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2S4-08-06 | G1/2"X14 | G3/8"X19 | 30.5 | 9 | 22 | 22 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2S4-12 | G3/4"X14 | G3/4"X14 | 34 | 13.5 | 27 | 32 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2S4-16 | G1"X11 | G1"X11 | 37.5 | 16 | 33 | 41 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2S4-20 | G1.1/4"X11 | G1.1/4"X11 | 44.5 | 18.5 | 41 | 50 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2S4-24 | G1.1/2"X11 | G1.1/2"X11 | 47.5 | 19 | 48 | 55 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Details
High quality hydraulic fitting can satisfy your different needs with
its special quality and features.
1.high quality Zinc plated,Zn-Ni plated,Cr3,Cr6 plated.
2.high precision.all edges without burrs,brake sharp edges.
3.competitive price.
4. MOQ:300PCS
5. Material: iron, carbon steel, stainless steel, other metals
6.Standard / specification: Standard or as per drawing and samples (OEM)
7. Size: as per customers' requests
Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.
Deliver,Shipping And Serving
1. Delivery:As general,we can guarantee the delivery within one month.
2. Port of loading: Ningbo or Shanghai
3. Samples Fee: We can offord the samples fee.
