HYDRAULIC 2Q9 METRIC MALE 74°CONE / METRIC FEMALE 74°SEAT
  • Air ProHYDRAULIC 2Q9 METRIC MALE 74°CONE / METRIC FEMALE 74°SEAT

HYDRAULIC 2Q9 METRIC MALE 74°CONE / METRIC FEMALE 74°SEAT

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 2Q9 METRIC MALE 74°CONE / METRIC FEMALE 74°SEAT

Model:2Q9

Send Inquiry

Product Description

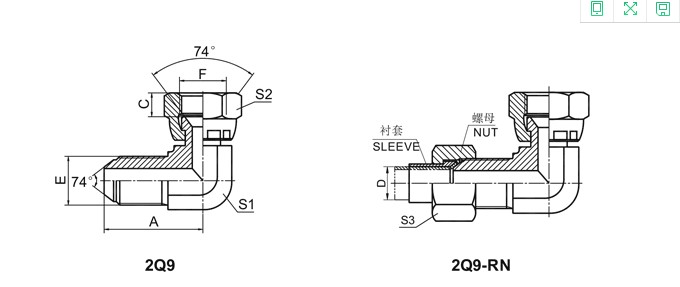

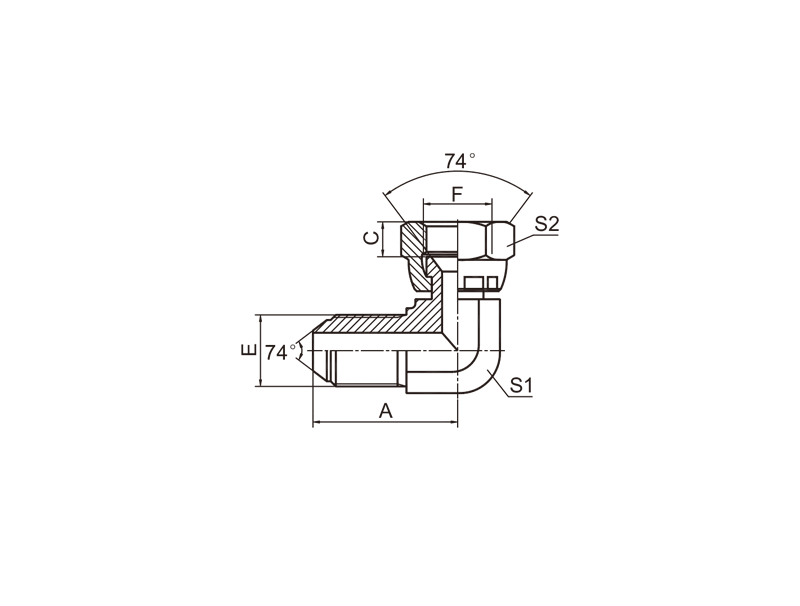

HYDRAULIC 2Q9 METRIC MALE 74°CONE / METRIC FEMALE 74°SEAT



 PART NO.  THREAD TUBE O.D.   DIMENSIONS
E F D A C S1 S2 S3
2Q9-14 M14X1.5 M14X1.5 8 30.2 8.5 14 19 17
2Q9-16 M16X1.5 M16X1.5 10 32.5 8 16 22 19
2Q9-18 M18X1.5 M18X1.5 12 34 8 19 24 22
2Q9-22 M22X1.5 M22X1.5 14 37.5 10 22 27 27
2Q9-27 M27X1.5 M27X1.5 18 41.5 10 27 32 32
2Q9-30 M30X1.5 M30X1.5 20 45.8 11 30 36 36
2Q9-33 M33X2 M33X2 22 49.5 13 33 41 38
2Q9-36 M36X2 M36X2 25 51.5 13 36 41 41
2Q9-39 M39X2 M39X2 28 55.5 13 41 46 46
2Q9-45 M45X2 M45X2 34 62.5 15 48 55 55
Note:In case if you are interested to order the adapter in complete set with sleeve and nut , it is necessary to insert suffix "RN" after our part no.,for example 2Q9-18RN, The sleeve NO. is NB500-Q and the nut NO. is NB200-Q。is NB200-Q。
