HYDRAULIC 2OU SAE O-RING BOSS L-SERIES ISO 11926-3 / NPSM FEMALE 60° CONE
  • Air ProHYDRAULIC 2OU SAE O-RING BOSS L-SERIES ISO 11926-3 / NPSM FEMALE 60° CONE

HYDRAULIC 2OU SAE O-RING BOSS L-SERIES ISO 11926-3 / NPSM FEMALE 60° CONE

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 2OU SAE O-RING BOSS L-SERIES ISO 11926-3 / NPSM FEMALE 60° CONE

Model:2OU

Send Inquiry

Product Description

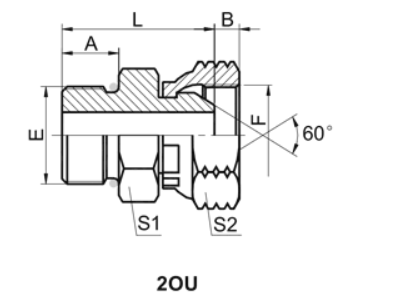

HYDRAULIC 2OU SAE O-RING BOSS L-SERIES ISO 11926-3 / NPSM FEMALE 60° CONE






 PART NO.    THREAD   O-RING    DIMENSIONS
E F A B L S1 S2
2OU-04 7/16"X20 1/4"X18 O904 9.1 4.6 26 14 19
2OU-04-06 7/16"X20 3/8"X18 O904 9.1 6 27.5 17 22
2OU-06 9/16"X18 3/8"X18 O906 9.9 6 28.5 17 22
2OU-06-08 9/16"X18 1/2"X14 O906 9.9 7.5 30 19 27
2OU-08 3/4"X16 1/2"X14 O908 11.1 7.5 33 22 27
2OU-08-06 3/4"X16 3/8"X18 O908 11.1 6 31 22 22
2OU-10-08 7/8"X14 1/2"X14 O910 12.7 7.5 36.5 27 27
2OU-12-08 1.1/16"X12 1/2"X14 O912 15.1 7.5 40 32 27
2OU-12 1.1/16"X12 3/4"X14 O912 15.1 8.9 41 32 32
2OU-12-16 1.1/16"X12 1"X11.5 O912 15.1 10.5 42.5 32 41
2OU-16 1.5/16"X12 1"X11.5 O916 15.1 10.5 42.5 38 41
2OU-20 1.5/8"X12 1.1/4"X11.5 O920 15.1 11.2 50 50 50
2OU-24 1.7/8"X12 1.1/2"X11.5 O924 15.1 11.2 50 55 55
