NPT & NPS THREADS · NPT is NATIONAL PIPE TAPER (AMERICAN) – Thread form per ANSI/ASME B1.20.1 · NPS is NATIONAL PIPE STRAIGHT (PARALLEL) – Thread form per ANSI/ASME B1.20.1 · NPTF is NATIONAL PIPE TAPER FOR FUEL – Thread form per SAE J476 · NPSM is NATIONAL PIPE STRAIGHT MECHANICAL – Thread form per ANSI/ASME B1.20.1
1. The hydraulic connected thread has three types:NPT,NPTF and BSPT.
2. NPT,BSPT threads should be assembled with sealant.NPTF is metal to metal seal,but use sealant also.Sealants are available in various forms such as Teflon tape,paste and anaerobic gule etc.
3. Teflon tape,paste etc.,if applied improperly,they will pollute the oil of the hydraulic system,even jam the system.
4. The seal of the small thread is better than large.In general the seal of less than 3/4”are good.
5. The connect will compact when the taper thread for straight fitting,if for eblow or tee or cross fittings,the assemble angle is difficult to contron,so sugguest that the adjustable stud end fittings should be used,for example ISO6149,ISO11926 etc..

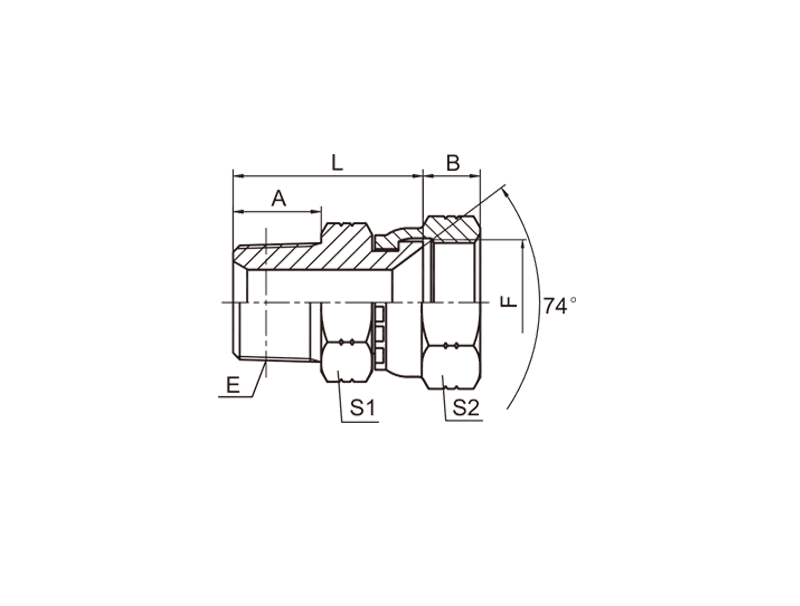

PART NO. | E | F | A | B | L | S1 | S2 | ||||||||||||||||||||||||||||||||||||||||
2NJ-02-04 | Z1/8"X27 | 7/16"X20 | 10.5 | 9 | 24.5 | 12 | 17 | ||||||||||||||||||||||||||||||||||||||||
2NJ-02-05 | Z1/8"X27 | 1/2"X20 | 10.5 | 9 | 25 | 12 | 17 | ||||||||||||||||||||||||||||||||||||||||
2NJ-04 | Z1/4"X18 | 7/16"X20 | 15 | 9 | 29 | 17 | 17 | ||||||||||||||||||||||||||||||||||||||||
2NJ-04-05 | Z1/4"X18 | 1/2"X20 | 15 | 9 | 29.5 | 17 | 17 | ||||||||||||||||||||||||||||||||||||||||
2NJ-04-06 | Z1/4"X18 | 9/16"X18 | 15 | 10.5 | 29.5 | 17 | 19 | ||||||||||||||||||||||||||||||||||||||||
2NJ-04-08 | Z1/4"X18 | 3/4"X16 | 15 | 10.5 | 31.5 | 19 | 24 | ||||||||||||||||||||||||||||||||||||||||
2NJ-06 | Z3/8"X18 | 9/16"X18 | 16 | 10.5 | 30.5 | 19 | 19 | ||||||||||||||||||||||||||||||||||||||||
2NJ-06-08 | Z3/8"X18 | 3/4"X16 | 16 | 10.5 | 32.5 | 19 | 24 | ||||||||||||||||||||||||||||||||||||||||
2NJ-06-10 | Z3/8"X18 | 7/8"X14 | 16 | 12 | 35 | 22 | 27 | ||||||||||||||||||||||||||||||||||||||||
2NJ-08 | Z1/2"X14 | 3/4"X16 | 19.5 | 10.5 | 37.5 | 22 | 24 | ||||||||||||||||||||||||||||||||||||||||
2NJ-08-06 | Z1/2"X14 | 9/16"X18 | 19.5 | 10.5 | 36 | 22 | 19 | ||||||||||||||||||||||||||||||||||||||||
2NJ-08-10 | Z1/2"X14 | 7/8"X14 | 19.5 | 12 | 38 | 22 | 27 | ||||||||||||||||||||||||||||||||||||||||
2NJ-08-12 | Z1/2"X14 | 1.1/16"X12 | 19.5 | 15 | 42 | 27 | 32 | ||||||||||||||||||||||||||||||||||||||||
2NJ-12 | Z3/4"X14 | 1.1/16"X12 | 19.5 | 15 | 42 | 30 | 32 | ||||||||||||||||||||||||||||||||||||||||
2NJ-12-08 | Z3/4"X14 | 3/4"X16 | 19.5 | 10.5 | 40 | 30 | 24 | ||||||||||||||||||||||||||||||||||||||||
2NJ-12-10 | Z3/4"X14 | 7/8"X14 | 19.5 | 12 | 40.5 | 30 | 27 | ||||||||||||||||||||||||||||||||||||||||
2NJ-12-16 | Z3/4"X14 | 1.5/16"X12 | 19.5 | 16 | 42.5 | 32 | 41 | ||||||||||||||||||||||||||||||||||||||||
2NJ-16 | Z1"X11.5 | 1.5/16"X12 | 25.5 | 16 | 48 | 36 | 41 | ||||||||||||||||||||||||||||||||||||||||
2NJ-16-12 | Z1"X11.5 | 1.1/16"X12 | 25.5 | 15 | 49 | 36 | 32 | ||||||||||||||||||||||||||||||||||||||||
2NJ-16-20 | Z1"X11.5 | 1.5/8"X12 | 25.5 | 17 | 52.5 | 41 | 50 | ||||||||||||||||||||||||||||||||||||||||
2NJ-20 | Z1.1/4"X11.5 | 1.5/8"X12 | 26.5 | 17 | 52.5 | 46 | 50 | ||||||||||||||||||||||||||||||||||||||||
2NJ-20-24 | Z1.1/4"X11.5 | 1.7/8"X12 | 26.5 | 20 | 54 | 46 | 60 | ||||||||||||||||||||||||||||||||||||||||
2NJ-24-20 | Z1.1/2"X11.5 | 1.5/8"X12 | 27.5 | 17 | 56.5 | 50 | 50 | ||||||||||||||||||||||||||||||||||||||||
2NJ-24 | Z1.1/2"X11.5 | 1.7/8"X12 | 27.5 | 23.5 | 57 | 50 | 60 |
High quality hydraulic fitting can satisfy your different needs with
its special quality and features.
1.high quality Zinc plated,Zn-Ni plated,Cr3,Cr6 plated.
2.high precision.all edges without burrs,brake sharp edges.
3.competitive price.
4. MOQ:300PCS
5. Material: iron, carbon steel, stainless steel, other metals
6.Standard / specification: Standard or as per drawing and samples (OEM)
7. Size: as per customers' requests
Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.
1. Delivery:As general,we can guarantee the delivery within one month.
2. Port of loading: Ningbo or Shanghai
3. Samples Fee: We can offord the samples fee.
