HYDRAULIC 2NF NPT MALE/ORFS FEMALE
  • Air ProHYDRAULIC 2NF NPT MALE/ORFS FEMALE

HYDRAULIC 2NF NPT MALE/ORFS FEMALE

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials：stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 2NF NPT MALE/ORFS FEMALE

Model:2NF

Send Inquiry

Product Description

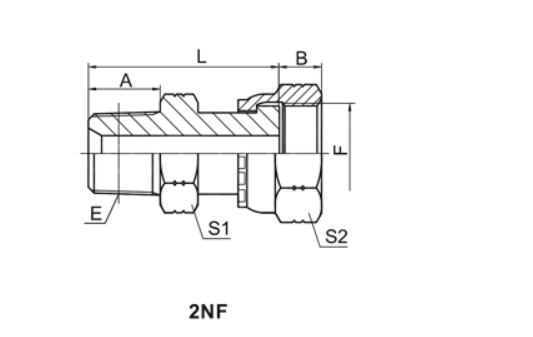

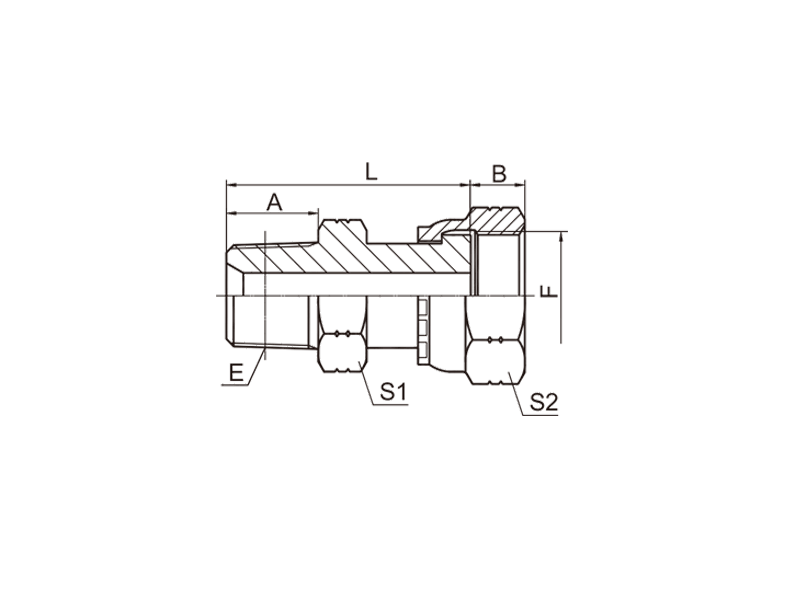

HYDRAULIC 2NF NPT MALE/ORFS FEMALE



 PART NO.       THREAD       DIMENSIONS
E F A B L S1 S2
2NF-02-04 Z1/8"X27 9/16"X18 10.5 8.5 32 14 19
2NF-04 Z1/4"X18 9/16"X18 15 8.5 36.5 17 19
2NF-04-06 Z1/4"X18 11/16"X16 15 10 39.5 17 22
2NF-06 Z3/8"X18 11/16"X16 16 10 40.5 19 22
2NF-06-08 Z3/8"X18 13/16"X16 16 11 42.5 19 27
2NF-08 Z1/2"X14 13/16"X16 19.5 11 48 22 27
2NF-08-10 Z1/2"X14 1"X14 19.5 13 52 24 30
2NF-12 Z3/4"X14 1.3/16"X12 19.5 15 55.5 30 36
2NF-12-16 Z3/4"X14 1.7/16"X12 19.5 15 58.5 36 41
2NF-16 Z1"X11.5 1.7/16"X12 25.5 15 64.5 36 41
2NF-16-20 Z1"X11.5 1.11/16"X12 25.5 15 66 41 50
2NF-20 Z1.1/4"X11.5 1.11/16"X12 26.5 15 67 46 50
2NF-24 Z1.1/2"X11.5 2"X12 27.5 15 72.5 50 60
