HYDRAULIC 2NB NPT MALE / BSP FEMALE 60°CONE
  • Air ProHYDRAULIC 2NB NPT MALE / BSP FEMALE 60°CONE

HYDRAULIC 2NB NPT MALE / BSP FEMALE 60°CONE

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 2NB NPT MALE / BSP FEMALE 60°CONE

Model:2NB

Send Inquiry

Product Description

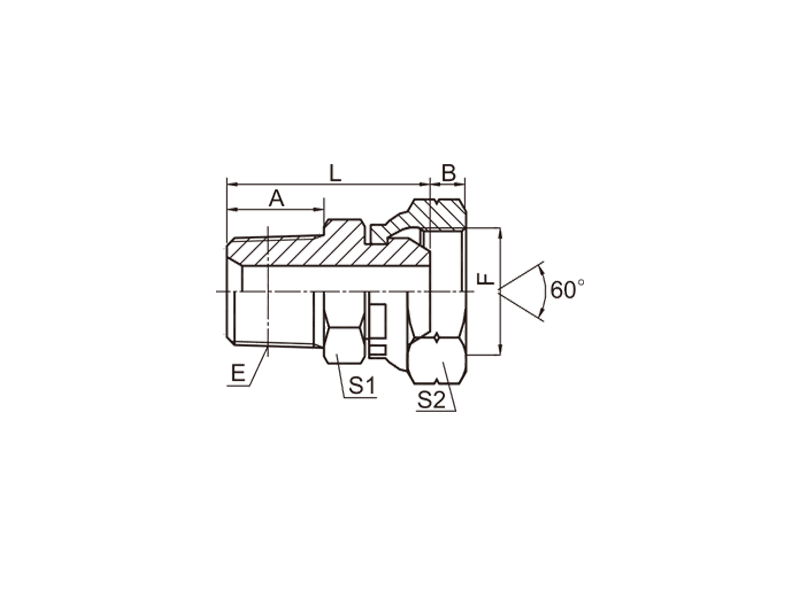

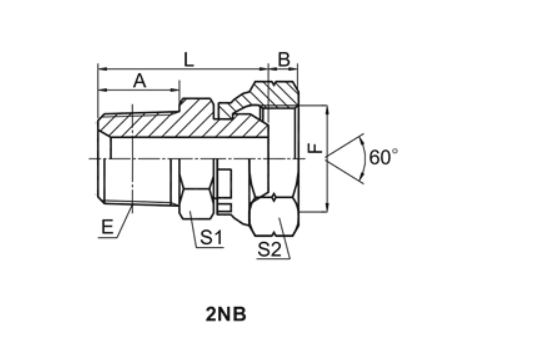

HYDRAULIC 2NB NPT MALE / BSP FEMALE 60°CONE





c    THREAD     DIMENSIONS
E F A B L S1 S2
2NB-02 Z1/8"X27 G1/8"X28 10.5 5.5 25.5 12 14
2NB-02-04 Z1/8"X27 G1/4"X19 10.5 5.5 27 14 19
2NB-04 Z1/4"X18 G1/4"X19 15 5.5 31 17 19
2NB-04-06 Z1/4"X18 G3/8"X19 15 6.3 32.5 17 22
2NB-04-08 Z1/4"X18 G1/2"X14 15 7.5 35 19 27
2NB-06 Z3/8"X18 G3/8"X19 16 6.3 33.5 19 22
2NB-06-08 Z3/8"X18 G1/2"X14 16 7.5 36 19 27
2NB-08 Z1/2"X14 G1/2"X14 19.5 7.5 41 22 27
2NB-08-06 Z1/2"X14 G3/8"X19 19.5 6.3 39.5 24 24
2NB-08-12 Z1/2"X14 G3/4"X14 19.5 10.9 44.5 27 32
2NB-12 Z3/4"X14 G3/4"X14 19.5 10.9 44.5 30 32
2NB-12-16 Z3/4"X14 G1"X11 19.5 11.7 46.5 32 41
2NB-16 Z1"X11.5 G1"X11 25.5 11.7 52.5 36 41
2NB-16-20 Z1"X11.5 G1.1/4"X11 25.5 11 59.5 41 50
2NB-20 Z1.1/4"X11.5 G1.1/4"X11 26.5 11 60.4 46 50
2NB-24 Z1.1/2"X11.5 G1.1/2"X11 27.5 13 62 50 55
2NB-32 Z2"X11.5 G2"X11 27.5 20 65.4 65 70
