HYDRAULIC 2M METRIC MALE 60°SEAT/METRIC FEMALE 60°CONE
  • Air ProHYDRAULIC 2M METRIC MALE 60°SEAT/METRIC FEMALE 60°CONE

HYDRAULIC 2M METRIC MALE 60°SEAT/METRIC FEMALE 60°CONE

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 2M METRIC MALE 60°SEAT/METRIC FEMALE 60°CONE

Model:2M

Send Inquiry

Product Description

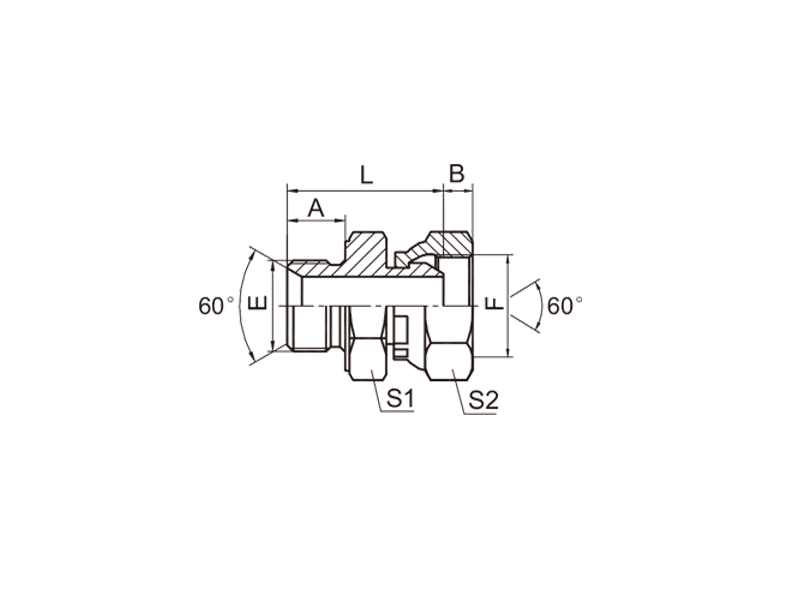

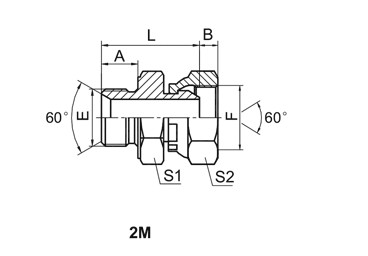

HYDRAULIC 2M METRIC MALE 60°SEAT/METRIC FEMALE 60°CONE



 PART NO.  THREAD   DIMENSIONS
E F A B L S1 S2
2M-12 M12X1.5 M12X1.5 10 5 28 17 17
2M-14 M14X1.5 M14X1.5 11 5.5 29.5 19 19
2M-16 M16X1.5 M16X1.5 12 5.5 32 22 22
2M-16-18 M16X1.5 M18X1.5 12 5.5 33 22 24
2M-18 M18X1.5 M18X1.5 12 5.5 33 24 24
2M-18-16 M18X1.5 M16X1.5 12 5.5 32 24 22
2M-18-20 M18X1.5 M20X1.5 12 6.5 34.5 24 27
2M-18-22 M18X1.5 M22X1.5 12 6 35 24 27
2M-20 M20X1.5 M20X1.5 14 6.5 38.5 27 27
2M-20-18 M20X1.5 M18X1.5 14 5.5 37 27 24
2M-20-22 M20X1.5 M22X1.5 14 6 39 27 27
2M-22 M22X1.5 M22X1.5 14 6 39 27 27
2M-22-18 M22X1.5 M18X1.5 14 5.5 37 27 24
2M-22-20 M22X1.5 M20X1.5 14 6.5 38.5 27 27
2M-27 M27X2 M27X2 16 6 42.5 32 32
2M-27D M27X1.5 M27X1.5 16 6 42.5 32 32
2M-30 M30X2 M30X2 18 6 46.5 36 36
2M-30D M30X1.5 M30X1.5 18 6 46.5 36 36
