JIC 37° FLARE & UNO(O RING BOSS) THREADS • JIC is JOINT INDUSTRIES COUNCIL – SAE J514, ISO 8434-2 • UN is UNIFIED NATIONAL – SAE J1926, ISO 11926-2 JIC & UNO (O Ring Boss) thread forms are the same (ASME B1.1). Method of sealing differs. JIC male has 37° flare which seals against 37° seat in female. JIC male can also seal against 37° flared tubing with JIC nut and sleeve. JIC male can also be used with RYCO S134 J-Lok Female Nut and Flareless Olive on Imperial OD tubing.
Individually bagged to prevent contamination, these fittings are suitable for applications that require a high level of cleanliness. Also known as JIC (Joint Industrial Council) fittings, they provide a tight metal-to-metal seal on tubing that is flared to 37°. They have excellent corrosion resistance. Fittings require a nut and a sleeve (ferrule) for each tube end. Nuts and sleeves are sold separately and are not cleaned and bagged.

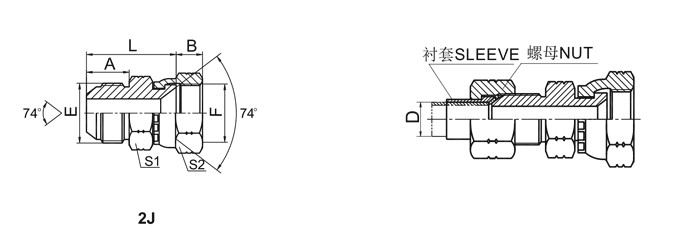

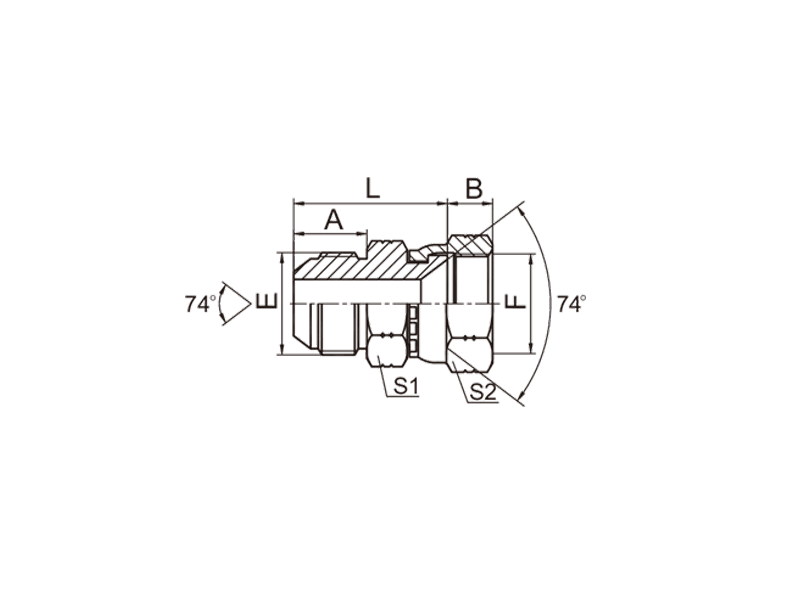

PART NO. | THREAD | DIMENSIONS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
E | F | A | B | L | S1 | S2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
2J-04 | 7/16"X20 | 7/16"X20 | 14 | 9 | 28 | 12 | 15 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
2J-04-05 | 7/16"X20 | 1/2"X20 | 14 | 9.5 | 28.5 | 12 | 17 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
2J-04-06 | 7/16"X20 | 9/16"X18 | 14 | 10.5 | 28.5 | 14 | 19 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
2J-04-08 | 7/16"X20 | 3/4"X16 | 14 | 11 | 30.5 | 19 | 24 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
2J-05 | 1/2"X20 | 1/2"X20 | 14 | 9.5 | 29 | 14 | 17 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
2J-05-06 | 1/2"X20 | 9/16"X18 | 14 | 10.5 | 28.5 | 14 | 19 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
2J-05-08 | 1/2"X20 | 3/4"X16 | 14 | 11 | 30.5 | 19 | 24 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
2J-06 | 9/16"X18 | 9/16"X18 | 14.1 | 10.5 | 29 | 17 | 19 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
2J-06-08 | 9/16"X18 | 3/4'X16 | 14.1 | 11 | 31 | 19 | 24 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
2J-06-10 | 9/16"X18 | 7/8"X14 | 14.1 | 13 | 33.5 | 22 | 27 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
2J-08 | 3/4"X16 | 3/4"X16 | 16.7 | 11 | 36 | 22 | 24 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
2J-08-06 | 3/4"X16 | 9/16"X18 | 16.7 | 10.5 | 34 | 22 | 19 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
2J-08-10 | 3/4"X16 | 7/8"X14 | 16.7 | 13 | 36.5 | 22 | 27 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
2J-08-12 | 3/4"X16 | 1.1/16"X12 | 16.7 | 15 | 39.5 | 27 | 32 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
2J-10 | 7/8"X14 | 7/8"X14 | 19.3 | 13 | 39 | 24 | 27 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
2J-10-08 | 7/8"X14 | 3/4"X16 | 19.3 | 11 | 38 | 24 | 24 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
2J-10-12 | 7/8"X14 | 1.1/16"X12 | 19.3 | 15 | 42 | 27 | 32 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
2J-12 | 1.1/16"X12 | 1.1/16"X12 | 21.9 | 15 | 44.5 | 30 | 32 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
2J-12-10 | 1.1/16"X12 | 7/8"X14 | 21.9 | 13 | 43.5 | 30 | 27 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
2J-12-16 | 1.1/16"X12 | 1.5/16"X12 | 21.9 | 16 | 45.5 | 36 | 41 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
2J-16 | 1.5/16"X12 | 1.5/16"X12 | 23.1 | 16 | 46.5 | 36 | 41 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
2J-16-20 | 1.5/16"X12 | 1.5/8"X12 | 23.1 | 17 | 53 | 41 | 50 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
2J-20 | 1.5/8"X12 | 1.5/8"X12 | 24.3 | 17 | 54.5 | 46 | 50 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
2J-20-24 | 1.5/8"X12 | 1.7/8"X12 | 24.3 | 20 | 55.5 | 46 | 55 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
2J-24 | 1.7/8"X12 | 1.7/8"X12 | 27.5 | 20 | 61 | 50 | 55 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
2J-24-32 | 1.7/8"X12 | 2.1/2"X12 | 27.5 | 24.5 | 63 | 65 | 75 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
2J-32 | 2.1/2"X12 | 2.1/2"X12 | 33.9 | 24.5 | 69.5 | 65 | 75 |
