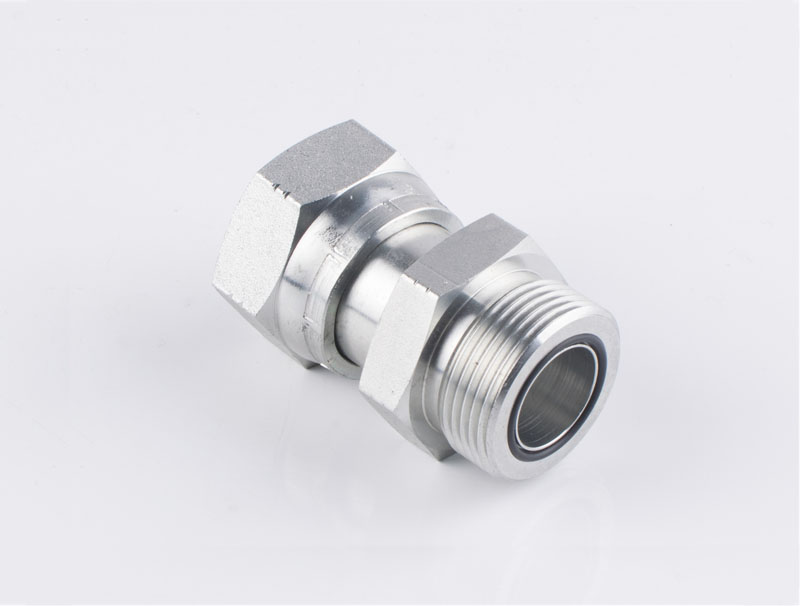

HYDRAULIC 2F ORFS MALE O-RING / ORFS FEMALE
  • Air ProHYDRAULIC 2F ORFS MALE O-RING / ORFS FEMALE

HYDRAULIC 2F ORFS MALE O-RING / ORFS FEMALE

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials：stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 82F ORFS MALE O-RING / ORFS FEMALE

Model:2F

Send Inquiry

Product Description

HYDRAULIC 2F ORFS MALE O-RING / ORFS FEMALE

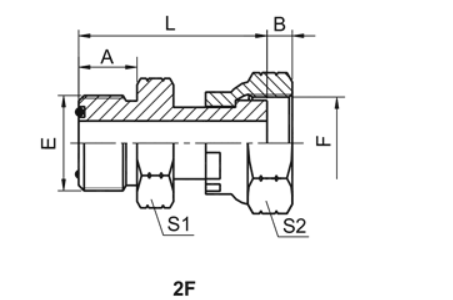

 PART NO.      THREAD  O-RING      DIMENSIONS
E F E END A B L S1 S2
2F-04 9/16"X18 9/16"X18 O011 9.8 8.5 33 17 19
2F-04-06 9/16"X18 11/16"X16 O011 9.8 10 34.5 17 22
2F-04-08 9/16"X18 13/16"X16 O011 9.8 11 36.5 19 27
2F-06-04 11/16"X16 9/16"X18 O012 11.2 8.5 35.5 19 19
2F-06 11/16"X16 11/16"X16 O012 11.2 10 38.5 19 22
2F-06-08 11/16"X16 13/16"X16 O012 11.2 11 37.7 19 27
2F-06-10 11/16"X16 1"X14 O012 11.2 13.5 43.7 24 30
2F-08-06 13/16"X16 11/16"X16 O014 13 10 41 22 22
2F-08 13/16"X16 13/16"X16 O014 13 11 43 22 27
2F-08-10 13/16"X16 1"X14 O014 13 13.5 45.5 24 30
2F-08-12 13/16"X16 1.3/16"X12 O014 13 15 49 30 36
2F-10-08 1"X14 13/16"X16 O016 15.5 11 47.5 27 27
2F-10 1"X14 1"X14 O016 15.5 13.5 51.5 27 30
2F-10-12 1"X14 1.3/16"X12 O016 15.5 15 51.5 30 36
2F-10-16 1"X14 1.7/16"X12 O016 15.5 15 56 36 41
2F-12-08 1.3/16"X12 13/16"X16 O018 17 11 50.5 32 27
2F-12-10 1.3/16"X12 1"X14 O018 17 13.5 54.5 32 30
2F-12 1.3/16"X12 1.3/16"X12 O018 17 15 56 32 36
2F-12-16 1.3/16"X12 1.7/16"X12 O018 17 15 58 36 41
2F-16-12 1.7/16"X12 1.3/16"X12 O021 17.5 15 58 38 36
2F-16 1.7/16"X12 1.7/16"X12 O021 17.5 15 60 38 41
2F-16-20 1.7/16"X12 1.11/16"X12 O021 17.5 15 62 41 50
2F-20-16 1.11/16"X12 1.7/16"X12 O025 17.5 15 58.5 46 41
2F-20 1.11/16"X12 1.11/16"X12 O025 17.5 15 62 46 50
2F-20-24 1.11/16"X12 2"X12 O025 17.5 16 65.5 50 60
2F-24-20 2"X12 1.11/16"X12 O029 17.5 15 64 55 50
2F-24 2"X12 2"X12 O029 17.5 16 64 55 60
