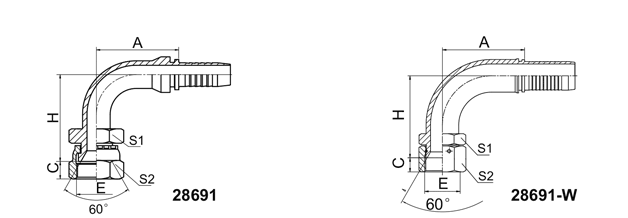

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 28691 90° JIS METRIC FEMALE 60° CONE SEAT
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||||
| DN | DASH | A | C | H | S1 | S2 | ||
| 28691-14-04 | M14X1.5 | 6 | 04 | 30 | 10.5 | 38 | 19 | 19 |
| 28691-14-06 | M14X1.5 | 10 | 06 | 35.5 | 10.5 | 43.3 | 19 | 19 |
| 28691-16-05 | M16X1.5 | 8 | 05 | 33 | 10 | 44 | 22 | 22 |
| 28691-18-06 | M18X1.5 | 10 | 06 | 35.3 | 11.5 | 46.3 | 24 | 24 |
| 28691-22-08 | M22X1.5 | 12 | 08 | 41 | 14 | 52.5 | 27 | 27 |
| 28691-24-10 | M24X1.5 | 16 | 10 | 56.5 | 15 | 59 | 32 | 32 |
| 28691-30-12 | M30X1.5 | 20 | 12 | 65.5 | 18.3 | 68.5 | 36 | 36 |
| 28691-33-16 | M33X1.5 | 25 | 16 | 76.7 | 21.3 | 76 | 41 | 41 |
| 28691-36-20 | M36X1.5 | 32 | 20 | 93 | 20 | 90 | 46 | 46 |
| 28691-42-24W | M42X1.5 | 40 | 24 | 109.4 | 18.8 | 103 | 55 | 55 |
1.For use with braided hoses.
2.If use with spiral hoses.hose fitting series number is 28692-XX-XX.
