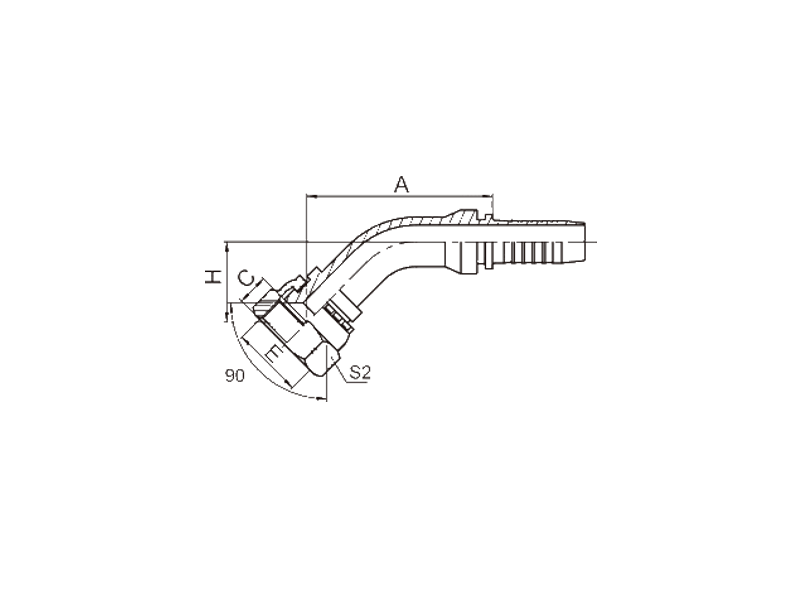

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 27841 45° SAE FEMALE 90° CONE SEAT(SAE J513)
| PART NO. | THREADE | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | A | C | S1 | S2 | ||
| 27841-04-03 | 7/16"X20 | 5 | 03 | 37.6 | 9 | 17.2 | 15 |
| 27841-06-04 | 5/8"X18 | 6 | 04 | 42 | 11.3 | 19.9 | 22 |
| 27841-06-05 | 5/8"X18 | 8 | 05 | 44.1 | 11.3 | 20.7 | 22 |
| 27841-06-06 | 5/8"X18 | 10 | 06 | 45.7 | 11.3 | 21.4 | 22 |
| 27841-08-08 | 3/4"X16 | 12 | 08 | 58.2 | 11 | 23.3 | 24 |
| 27841-10-08 | 7/8"X14 | 12 | 08 | 58.2 | 13 | 23.3 | 27 |
| 27841-10-10 | 7/8"X14 | 16 | 10 | 69.4 | 13 | 24.6 | 27 |
| 27841-12-12 | 1.1/16"X14 | 20 | 12 | 77.4 | 14.3 | 30 | 32 |
1.For use with braided hoses.
2.If use with spiral hoses.hose fitting series number is 27842-XX-XX.
