HYDRAULIC 27811 SAE FEMALE 90° CONE SEAT (SAE J513)
  • Air ProHYDRAULIC 27811 SAE FEMALE 90° CONE SEAT (SAE J513)

HYDRAULIC 27811 SAE FEMALE 90° CONE SEAT (SAE J513)

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 27811 SAE FEMALE 90° CONE SEAT (SAE J513)

Model:27811

Send Inquiry

Product Description

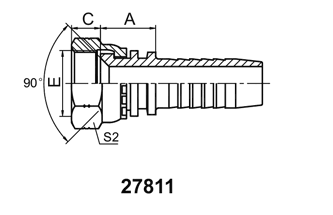

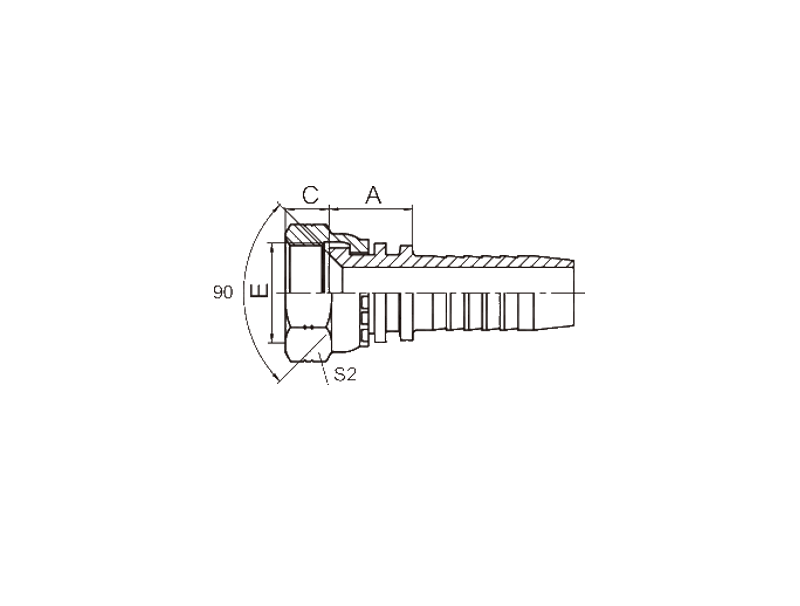

HYDRAULIC 27811 SAE FEMALE 90° CONE SEAT (SAE J513)


PART NO. THREADE  HOSE BORE  DIMENSIONS
DN DASH A C S2
27811-04-03 7/16"X20 5 03 14 9 15
27811-04-04 7/16"X20 6 04 15 9 15
27811-05-05 1/2"X20 8 05 15.5 9.5 17
27811-06-04 5/8"X18 6 04 17 11.3 22
27811-06-05 5/8"X18 8 05 17 11-3 22
27811-06-06 5/8"X18 10 06 17 11.3 22
27811-08-08 3/4"X16 12 08 18 11 24
27811-10-08 7/8"X14 12 08 18.5 13 27
27811-10-10 7/8"X14 16 10 20 13 27
27811-12-12 1.1/16"X14 20 12 21.5 14.3 32

NOTE:

1.For use with braided hoses.

2.If use with spiral hoses.hose fitting series number is 27812-XX-XX.
