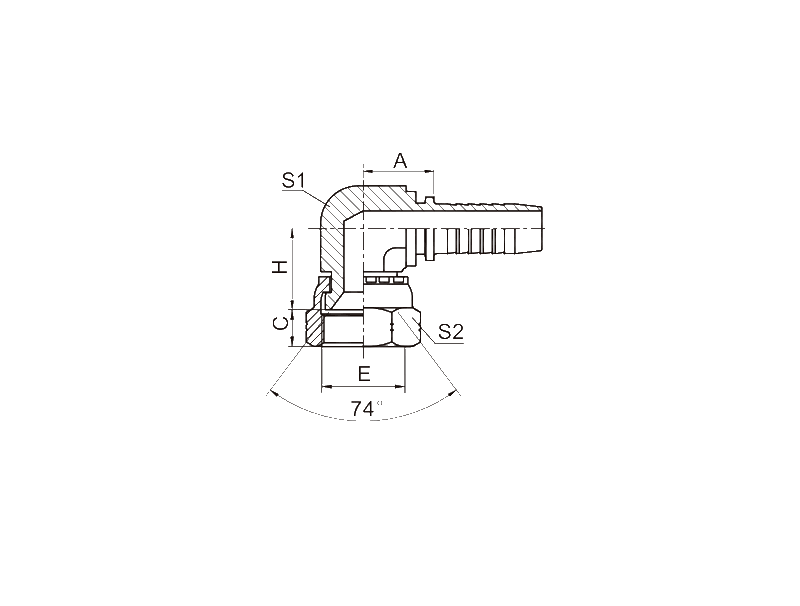

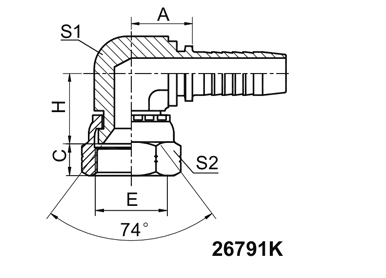

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 26791K 90°JIC COMPACT FEMALE 74°CONE SEAT (SAE J514)
| PART NO. | THREADE | HOSE BORE | DIMENSIONS | |||||
| DN | DASH | A | C | H | S1 | S2 | ||
| 26791K-04-04 | 7/16"X20 | 6 | 04 | 17.5 | 9 | 18 | 11 | 15 |
| 26791K-06-04 | 9/16"X18 | 6 | 04 | 19 | 10.5 | 21 | 14 | 19 |
| 26791K-06-06 | 9/16"X18 | 10 | 06 | 20 | 10.5 | 21 | 16 | 19 |
| 26791K-08-06 | 3/4"X16 | 10 | 06 | 23 | 11 | 25 | 19 | 24 |
| 26791K-08-08 | 3/4"X16 | 12 | 08 | 23.5 | 11 | 25 | 22 | 24 |
| 26791K-10-08 | 7/8"X14 | 12 | 08 | 23.5 | 13 | 27.5 | 22 | 27 |
| 26791K-10-10 | 7/8"X14 | 16 | 10 | 25 | 13 | 27.5 | 22 | 27 |
| 26791K-12-12 | 1.1/16"X12 | 20 | 12 | 27.5 | 15 | 30 | 27 | 32 |
| 26791K-16-16 | 1.5/16"X12 | 25 | 16 | 43 | 16 | 34.3 | 33 | 41 |
1.For use with braided hoses.
2.If use with spiral hoses.hose fitting series number is 26792K-XX-XX.
