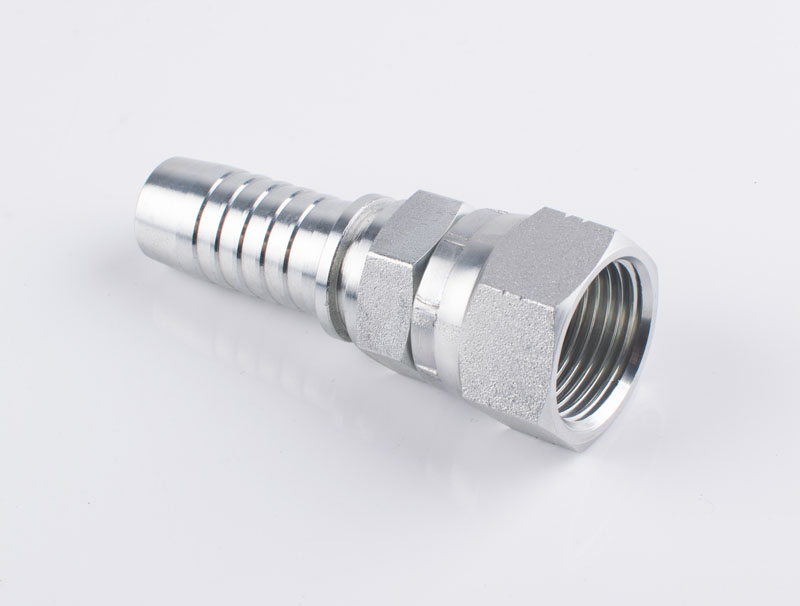

HYDRAULIC 26711D JIC FEMALE 74°CONE SEAT DOUBLE HEXAGON (SAE J514)
  • Air ProHYDRAULIC 26711D JIC FEMALE 74°CONE SEAT DOUBLE HEXAGON (SAE J514)

HYDRAULIC 26711D JIC FEMALE 74°CONE SEAT DOUBLE HEXAGON (SAE J514)

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 26711D JIC FEMALE 74°CONE SEAT DOUBLE HEXAGON (SAE J514)

Model:26711D

Send Inquiry

Product Description

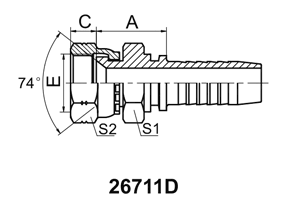

HYDRAULIC 26711D JIC FEMALE 74°CONE SEAT DOUBLE HEXAGON (SAE J514)



PART NO. THREADE  HOSE BORE  DIMENSIONS
DN DASH A C S1 S2
26711D-04-04 7/16"X20 6 04 20 9 15 15
26711D-05-04 1/2"X20 6 04 20.5 9.5 17 17
26711D-06-04 9/16"X18 6 04 21 10.5 19 19
26711D-06-06 9/16"X18 10 06 21 10.5 19 19
26711D-08-06 3/4"X16 10 06 25 11 24 24
26711D-08-08 3/4"X16 12 08 24.5 11 24 24
26711D-08-10 3/4"X16 16 10 25.5 11 24 24
26711D-10-08 7/8"X14 12 08 28 13 27 27
26711D-10-10 7/8"X14 16 10 29 13 27 27
26711D-12-12 1.1/16"X12 20 12 31.5 15 32 32
26711D-16-12 1.5/16"X12 20 12 33.5 16 41 41
26711D-16-16 1.5/16"X12 25 16 34.5 16 41 41
26711D-16-20 1.5/16"X12 32 20 36.5 16 41 41
26711D-20-20 1.7/16"X12 32 20 39 17 50 50

NOTE:

1.For use with braided hoses.

2.If use with spiral hoses.hose fitting series number is 26712D-XX-XX
