HYDRAULIC 24241 45°ORFS FEMALE FLAT SEAT (ISO 12151-1--SAE J516)
  • Air ProHYDRAULIC 24241 45°ORFS FEMALE FLAT SEAT (ISO 12151-1--SAE J516)

HYDRAULIC 24241 45°ORFS FEMALE FLAT SEAT (ISO 12151-1--SAE J516)

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 24241 45°ORFS FEMALE FLAT SEAT (ISO 12151-1--SAE J516)

Model:24241

Send Inquiry

Product Description

HYDRAULIC 24241 45°ORFS FEMALE FLAT SEAT (ISO 12151-1--SAE J516)

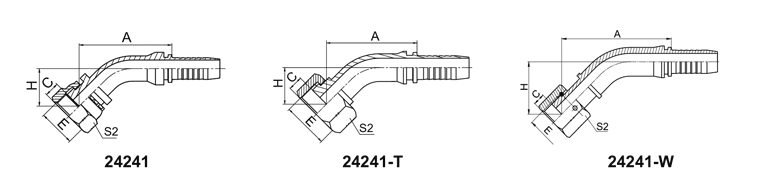

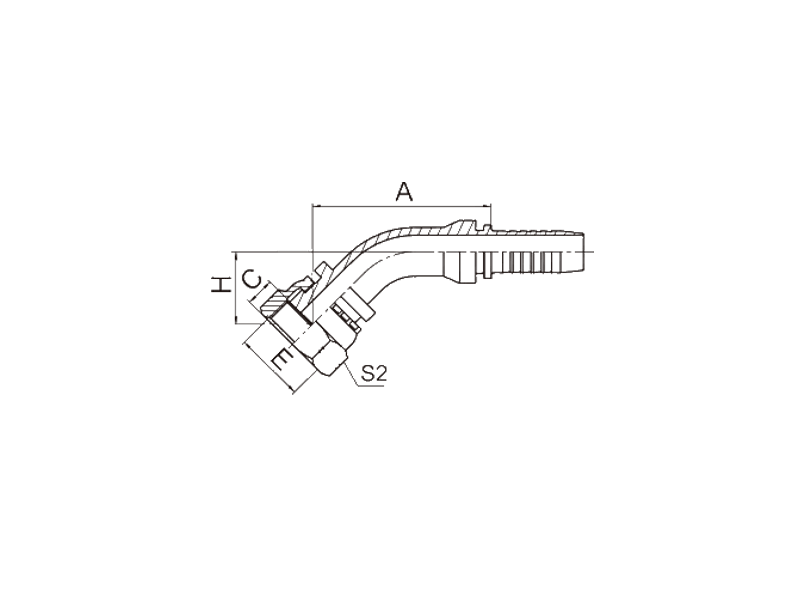

PART NO. THREAD E  HOSE BORE  DIMENSIONS
DN DASH A H C S2
24241-04-04 9/16"X18 6 04 45.5 23.4 8.5 19
24241-04-05 9/16"X18 8 05 47.6 24.3 8.5 19
24241-04-06 9/16"X18 10 06 49.2 24.9 8.5 19
24241-06-04T 11/16"X16 6 04 39.5 17.4 10 22
24241-06-05T 11/16"X16 8 05 42.3 19 10 22
24241-06-06 11/16"X16 10 06 51.7 27-4 10 22
24241-06-08 11/16"X16 12 08 63.9 29 10 22
24241-08-06T 13/16"X16 10 06 44.6 20.3 11 27
24241-08-08 13/16"X16 12 08 65.3 30.4 11 27
24241-08-10 13/16"X16 16 10 76.5 31-7 11 27
24241-10-08T 1"X14 12 08 58.2 23.3 13.5 30
24241-10-10 1"X14
16 10 79.7 34-9 13.5 30
24241-10-12 1"X14
20 12 86.5 38-4 13.5 30
24241-12-08T 1.3/16"X12 12 08 58.2 23.3 15 36
24241-12-10T 1.3/16"X12 16 10 69.4 24-6 15 36
24241-12-12 1.3/16"X12 20 12 87.6 39.5 15 36
24241-12-16 1.3/16"X12 25 16 95.3 41 15 36
24241-16-12T 1.7/16"X12 20 12 74 29.6 14.8 41
24241-16-14T 1.7/16"X12 22 14 78.7 28.5 14.8 41
24241-16-16T 1.7/16"X12 25 16 84.4 29.7 14.8 41
24241-16-20 1.7/16"X12 32 20 103.8 46-1 14.8 41
24241-20-16T 1.11/16"X12 25 16 80.9 32.7 15 50
24241-20-20W 1.11/16"X12 32 20 111.2 49 15 50
24241-20-24W 1.11/16"X12 40 24 123.6 52.9 15 50
24241-24-20T 2"X12 32 20 94.5 33.8 14.8 60
24241-24-24T 2"X12 40 24 108.5 37.7 14.8 60

NOTE:

1.For use with braided hoses.

2.If use with spiral hoses.hose fitting series number is 2424-XX-XX
