HYDRAULIC 24211 ORFS FEMALE FLAT SEAT (ISO 12151-1--SAE J516)

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 24211 ORFS FEMALE FLAT SEAT (ISO 12151-1--SAE J516)

Model:24211

Send Inquiry

Product Description

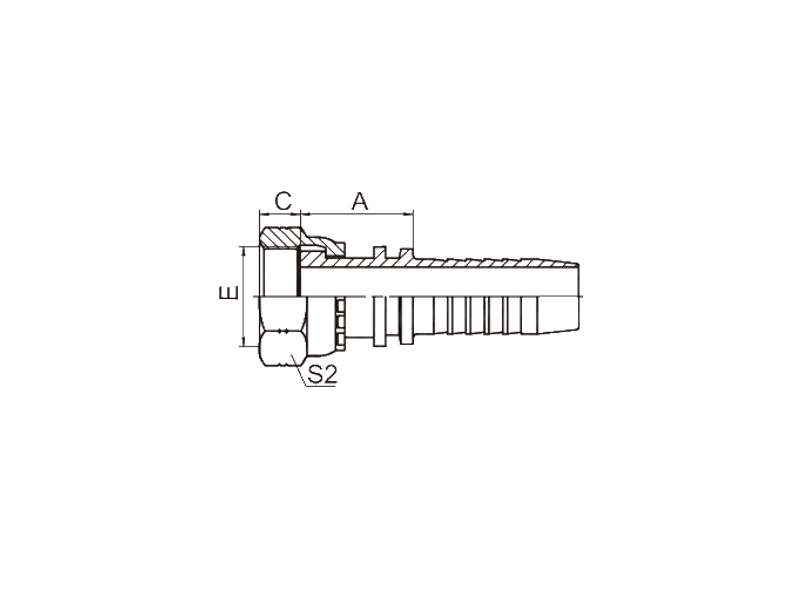

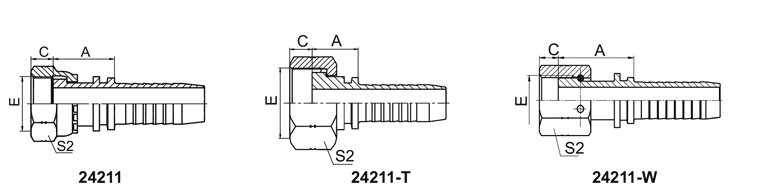

HYDRAULIC 24211 ORFS FEMALE FLAT SEAT (ISO 12151-1--SAE J516)



PART NO. THREAD E  HOSE BORE  DIMENSIONS
DN DASH A C S2
24211-04-04 9/16"X18 6 04 22.5 8.5 19
24211-04-05 9/16"X18 8 05 22.5 8.5 19
24211-04-06 9/16"X18 10 06 22.5 8.5 19
24211-06-04T 11/16"X16 6 04 23.5 10 22
24211-06-05T 11/16"X16 8 05 23.5 10 22
24211-06-06 11/16"X16 10 06 25.5 10 22
24211-06-08 11/16"X16 12 08 26 10 22
24211-08-05T 13/16"X16 8 05 25 11 27
24211-08-06T 13/16..X16 10 06 25 11 27
24211-08-08 13/16"X16 12 08 28 11 27
24211-08-10 13/16"X16 16 10 29 11 27
24211-10-08T 1"X14 12 08 29.5 13.5 30
24211-10-10 1"X14 16 10 33.5 13.5 30
24211-10-12 1"X14 20 12 33.5 13.5 30
24211-12-08T 1.3/16"X12 12 08 30.5 15 36
24211-12-10T 1.3/16"X12 16 10 31.5 15 36
24211-12-12 1.3/16"X12 20 12 35 15 36
24211-12-16 1.3/16"X12 25 16 36 15 36
24211-16-12T 1.7/16"X12 20 12 35 14.8 41
24211-16-14T 1.7/16"X12 22 14 34 14.8 41
24211-16-16T 1.7/16"X12 25 16 35 14.8 41
24211-16-20 1.7/16"X12 32 20 39.5 14.8 41
24211-20-16T 1.11/16"X12 25 16 35 15 50
24211-20-20W 1.11/16"X12 32 20 39.5 15 50
24211-20-24W 1.11/16"X12 40 24 39.5 15 50
24211-24-20T 2"X12 32 20 36 14.8 60
24211-24-24T 2"X12 40 24 36 14.8 60
NOTE:

1.For use with braided hoses.

2.If use with spiral hoses.hose fitting series number is 24212-XX-XX
