HYDRAULIC 22691K-PO 90°BSP COMPACT FEMALE 60°CONE
  • Air ProHYDRAULIC 22691K-PO 90°BSP COMPACT FEMALE 60°CONE

HYDRAULIC 22691K-PO 90°BSP COMPACT FEMALE 60°CONE

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 22691K-PO 90°BSP COMPACT FEMALE 60°CONE

Model:22691K-PO

Send Inquiry

Product Description

HYDRAULIC 22691K-PO 90°BSP COMPACT FEMALE 60°CONE

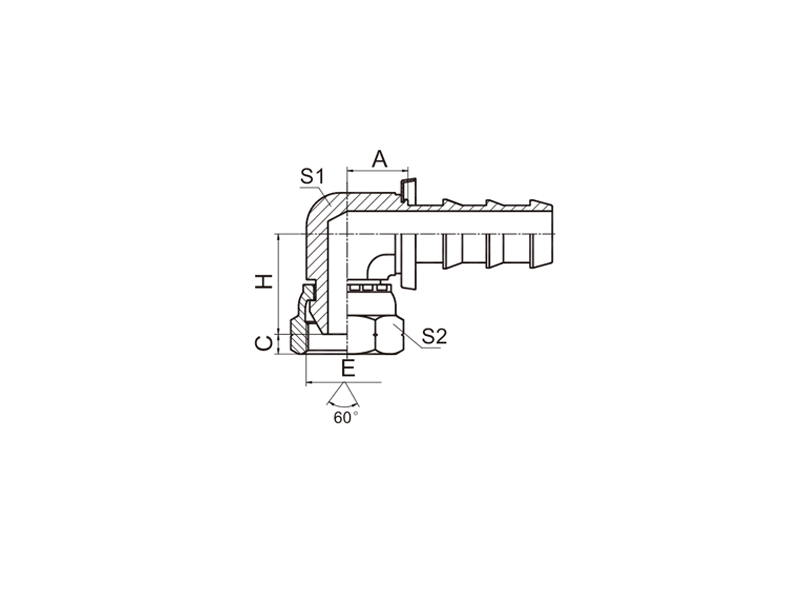

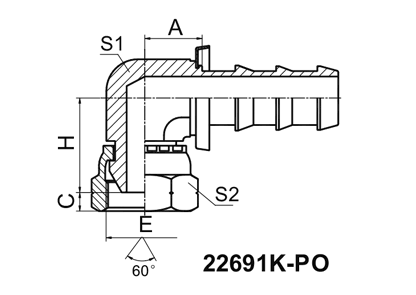

  PART NO.   THREADE   HOSE BORE   DIMENSIONS
 DN  DASH A C H S1 S2
22691 K-04-04PO G1/4"X19 6 04 12 5.5 18.5 11 19
22691 K-06-06PO G3/8"X19 10 06 14 6.3 24 14 22
22691 K-08-08PO G1/2"X14 12 08 17 7.5 26.5 19 27
22691K-12-12PO G3/4"X14 20 12 21.5 10.9 33 27 32
