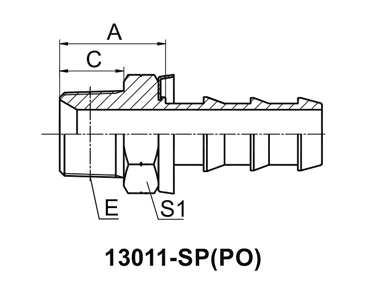

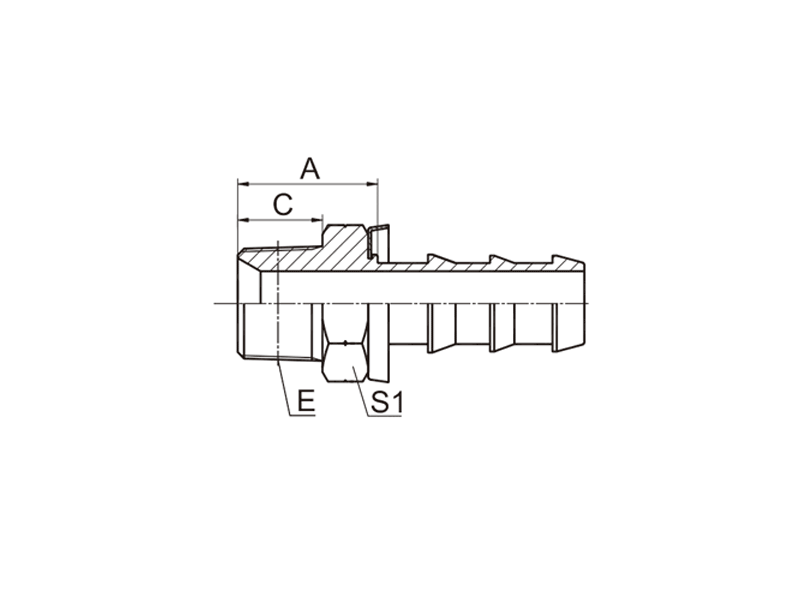

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 13011-SP(PO) BSPT MALE
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||
| DN | DASH | A | C | S1 | ||
| 13011-02-04SP(PO) | R1/8"X28 | 6 | 04 | 17.7 | 10 | 12 |
| 13011-04-04SP(PO) | R1/4"X19 | 6 | 04 | 20.5 | 14.5 | 14 |
| 13011-04-06SP(PO) | R1/4"X19 | 10 | 06 | 22 | 14.5 | 17 |
| 13011-06-06SP(PO) | R3/8"X19 | 10 | 06 | 23.5 | 15 | 19 |
| 13011-08-08SP(PO) | R1/2"X14 | 12 | 08 | 30.5 | 20 | 22 |
| 13011-12-12SP(PO) | R3/4"X14 | 20 | 12 | 29.4 | 20 | 27 |
