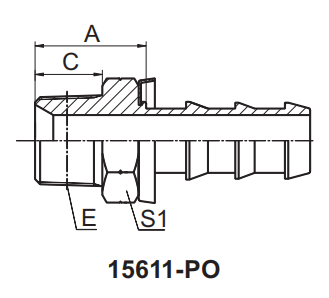

| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||
| DN | DASH | A | C | S1 | ||
| 15611-02-04PO | Z1/8"X27 | 6 | 04 | 18.2 | 10.5 | 12 |
| 15611-04-04PO | Z1/4"X18 | 6 | 04 | 22.7 | 15 | 14 |
| 15611-04-06PO | Z1/4"X18 | 10 | 06 | 22.5 | 15 | 14 |
| 15611-06-06PO | Z3/8"X18 | 10 | 06 | 23.5 | 16 | 19 |
| 15611-06-08PO | Z3/8"X18 | 12 | 08 | 23.7 | 16 | 19 |
| 15611-08-08PO | Z1/2"X14 | 12 | 08 | 29.2 | 19.5 | 22 |
| 15611-08-1OPO | Z1/2"X14 | 16 | 10 | 29 | 19.5 | 22 |
| 15611-12-12PO | Z3/4"X14 | 20 | 12 | 31.5 | 19.5 | 27 |
