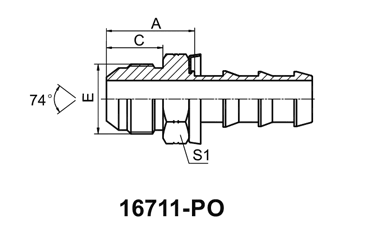

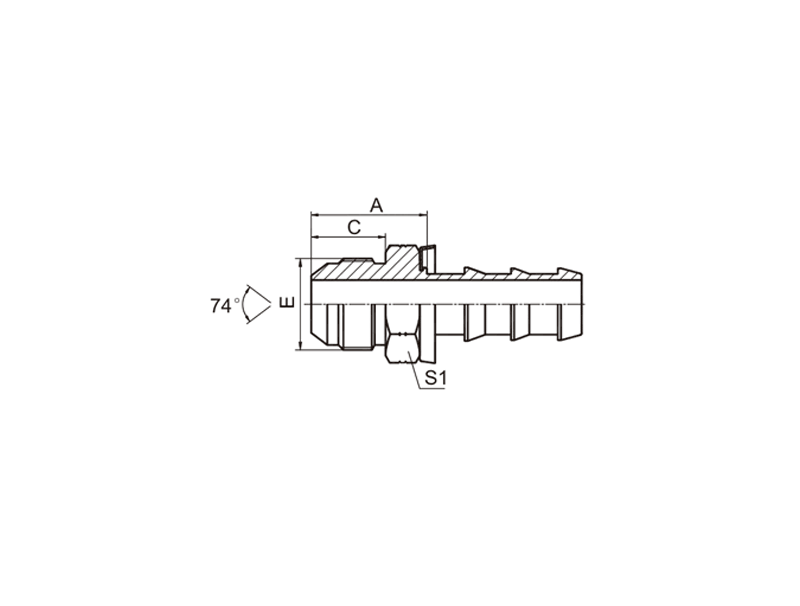

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 16711-PO JIC MALE 74°CONE
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||
| DN | DASH | A | C | S1 | ||
| 16711-04-04PO | 7/16"X20 | 6 | 04 | 22 | 14 | 12 |
| 16711-06-04PO | 9/16"X18 | 6 | 04 | 22 | 14.1 | 17 |
| 16711-06-06PO | 9/16"X18 | 10 | 06 | 22 | 14.1 | 17 |
| 16711-08-06PO | 3/4"X16 | 10 | 06 | 27.2 | 16.7 | 22 |
| 16711-08-08PO | 3/4"X16 | 12 | 08 | 27.2 | 16.7 | 22 |
| 16711-10-10PO | 7/8"X14 | 16 | 10 | 30 | 19.3 | 24 |
| 16711-10-12PO | 7/8"X14 | 20 | 12 | 29.4 | 19.3 | 24 |
| 16711-12-08PO | 1.1/16"X12 | 12 | 08 | 34.5 | 21.9 | 27 |
| 16711-12-10PO | 1.1/16"X12 | 16 | 10 | 34 | 21.9 | 27 |
| 16711-12-12PO | 1.1/16"X12 | 20 | 12 | 33.4 | 21.9 | 27 |
