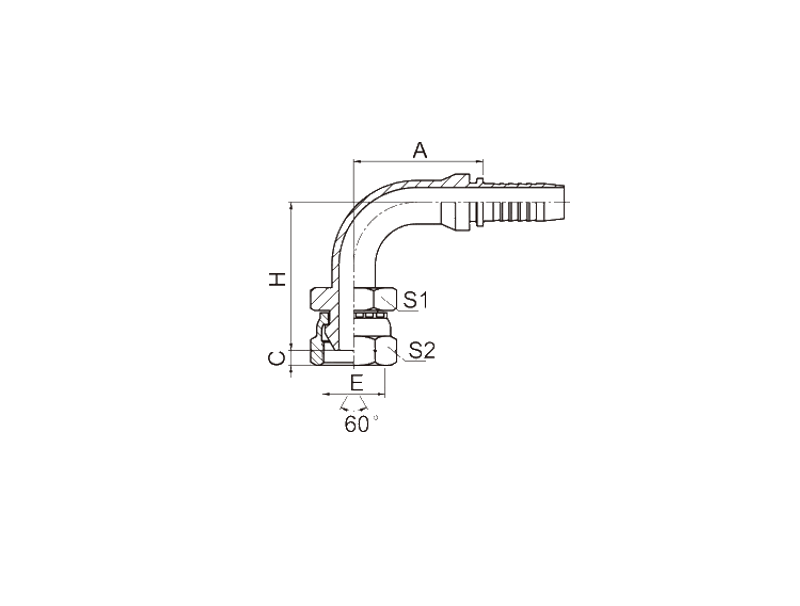

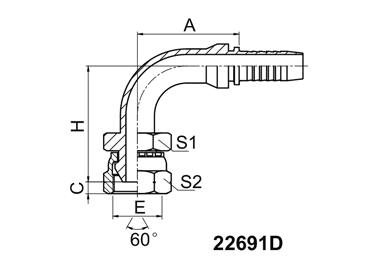

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials:stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 22691D 90°BSP FEMALE 60°CONE DOUBLE HEXAGON
PART NO. | THREADE | HOSE BORE | DIMENSIONS | |||||
DN | DASH | A | C | H | S1 | S2 | ||
22691D-04-04 | G1/4"X19 | 6 | 04 | 30 | 5.5 | 40.5 | 19 | 19 |
22691D-06-06 | G3/8"X19 | 10 | 06 | 35.3 | 6.3 | 49 | 22 | 22 |
22691D-08-08 | G1/2"X14 | 12 | 08 | 41 | 7.5 | 58 | 27 | 27 |
22691D-12-12 | G3/4"X14 | 20 | 12 | 65.5 | 10.9 | 74 | 32 | 32 |
22691D-16-16 | G1"X11 | 25 | 16 | 76.6 | 11.7 | 82 | 41 | 41 |
NOTE:
1.For use with braided hoses.
2.If use with spiral hoses.hose fitting series number is 22692-XX-XX
