HYDRAULIC 22611D-SM BSP FEMALE 60°CONE DOUBLE HEXAGON

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 22611D-SM BSP FEMALE 60°CONE DOUBLE HEXAGON

Model:22611D-SM

Send Inquiry

Product Description

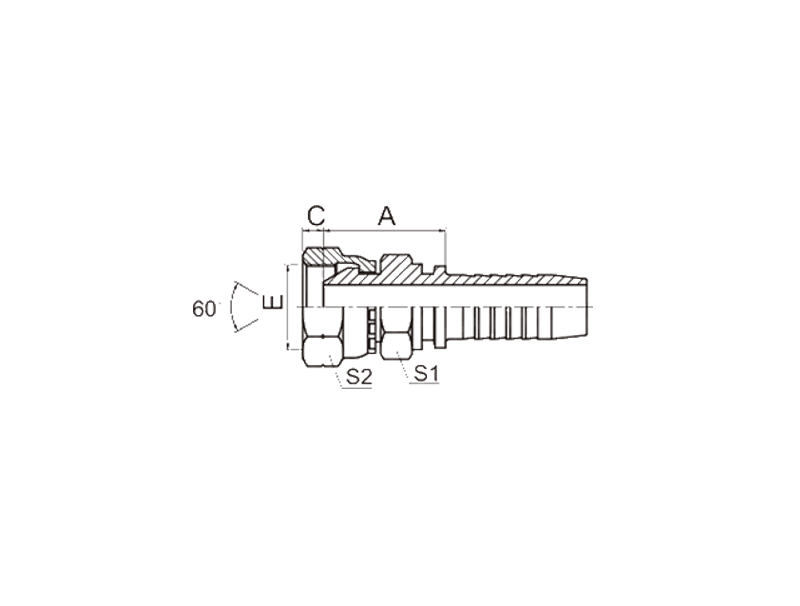

HYDRAULIC 22611D-SM BSP FEMALE 60°CONE DOUBLE HEXAGON



PART NO. THREADE  HOSE BORE  DIMENSIONS
DN DASH A C S1 S2
22611D-04-04SM G1/4"X19 6 04 23 5.5 14 19
22611D-06-06SM G3/8"X19 10 06 25 6.3 17 22
22611D-08-08SM G1/2"X14 12 08 28.5 7.5 22 27
22611D-10-08SM G5/8"X14 12 08 30 9.5 22 30
22611D-12-08SM G3/4"X14 12 08 32.1 10.9 27 32
22611D-12-12SM G3/4"X14 20 12 32.5 10.9 27 32
22611D-16-16SM G1"X11 25 16 36.3 11.7 32 41
22611D-20-20SM G1.1/4"X11 32 20 41.5 11 41 50

NOTE:

1.For use with braided hoses.

2.If use with spiral hoses.hose fitting series number is 22612D-XX-XXSM
