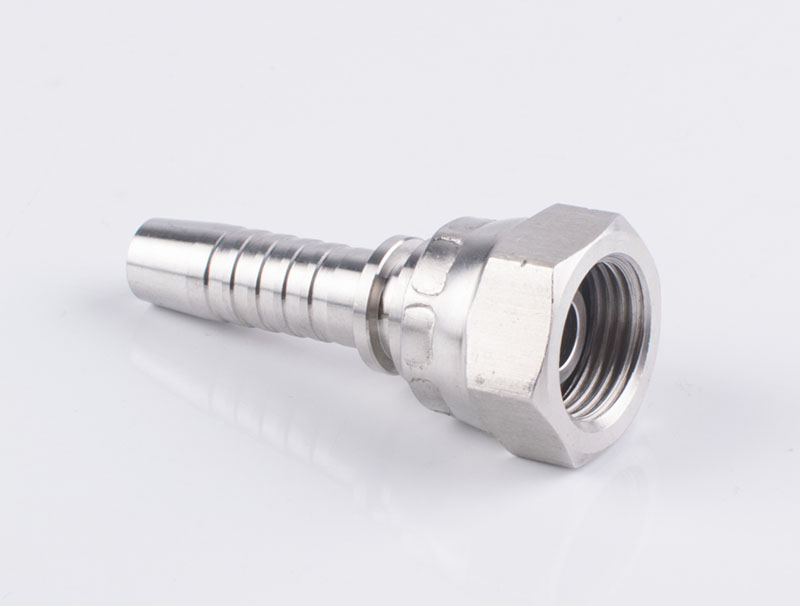

HYDRAULIC 22611 BSP FEMALE 60°CONE

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 22611 BSP FEMALE 60°CONE

Model:22611

Send Inquiry

Product Description

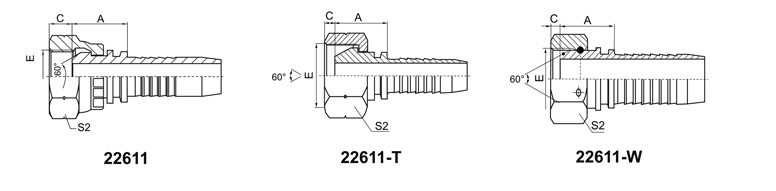

HYDRAULIC 22611 BSP FEMALE 60°CONE


PART NO. THREAD E  HOSE BORE DIMENSIONS
DN DASH A C S2
22611-02-03 G1/8"X28 5 03 15 5.5 14
22611-02-04 G1/8"X28 6 04 15 5-5 14
22611-04-03 G1/4"X19 5 03 17 5.5 19
22611-04-04 G1/4"X19 6 04 18 5.5 19
22611-04-05 G1/4-X19 8 05 18 5.5 19
22611-04-06 G1/4"X19 10 06 18 5.5 19
22611-06-04 G3/8"X19 6 04 19 6.3 22
22611-06-05 G3/8"X19 8 05 19 6.3 22
22611-06-06 G3/8"X19 10 06 19.5 6.3 22
22611-06-08 G3/8-X19 12 08 19.5 6-3 22
22611-08-06T G1/2-X14 10 06 21 7.5 27
22611-08-08 G1/2"X14 12 08 21.5 7-5 27
22611-10-08 G5/8"X14 12 08 22 9.5 30
22611-10-10 G5/8"X14 16 10 23.5 9-5 30
22611-12-08T G3/4-X14 12 08 22 10.9 32
22611-12-10 G3/4-X14 16 10 24 10.9 32
22611-12-12 G3/4"X14 20 12 24 10.9 32
22611-16-12T G1"X11 20 12 24 11.7 41
22611-16-14 G1"X11 22 14 26 11.7 41
22611-16-16 G1"X11 25 16 27 11.7 41
22611-20-16T G1.1/4"X11 25 ia 27.5 11 50
22611-20-20W G1.1/4"X11 32 20 30.5 11 50
22611-24-20T G1.1/2"X11 32 20 32 13 55
22611-24-24W G1.1/2"X11 40 24 32 13 55
22611-32-24T G2"X11 40 24 30 16 70
22611-32-32W G2"X11 50 32 31.9 16 70

NOTE:

1.For use with braided hoses.

2.If use with spiral hoses.hose fitting series number is 22612-XX-XX.
