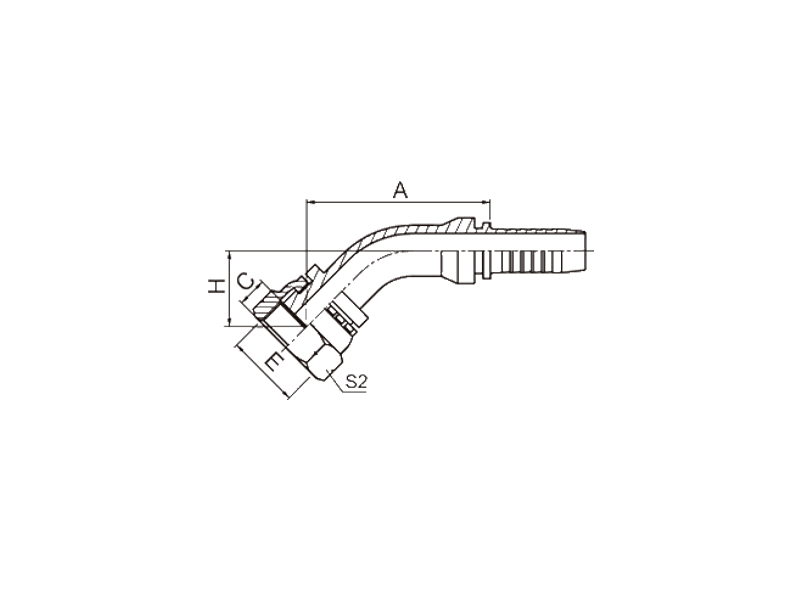

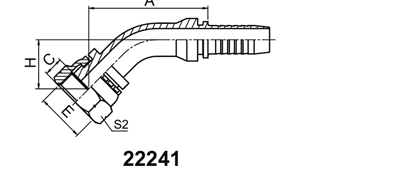

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 22241 45°BSP FEMALE FLAT SEAT
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | A | C | H | S2 | ||
| 22241-04-04 | G1/4"X19 | 6 | 04 | 40.9 | 8 | 18.8 | 19 |
| 22241-06-06 | G3/8"X19 | 10 | 06 | 45.3 | 9 | 21 | 22 |
| 22241-08-08 | G1/2"X14 | 12 | 08 | 58.9 | 10.5 | 24 | 27 |
| 22241-12-12 | G3/4"X14 | 20 | 12 | 77.4 | 13.5 | 30 | 32 |
| 22241-16-16 | G1"X11 | 25 | 16 | 82.7 | 15.5 | 31.5 | 41 |
| 22241-20-20W | G1.1/4"X11 | 32 | 20 | 97.3 | 15.5 | 36.6 | 50 |
1.For use with braided hoses.
2.If use with spiral hoses.hose fitting series number is 22242-XX-XX.
