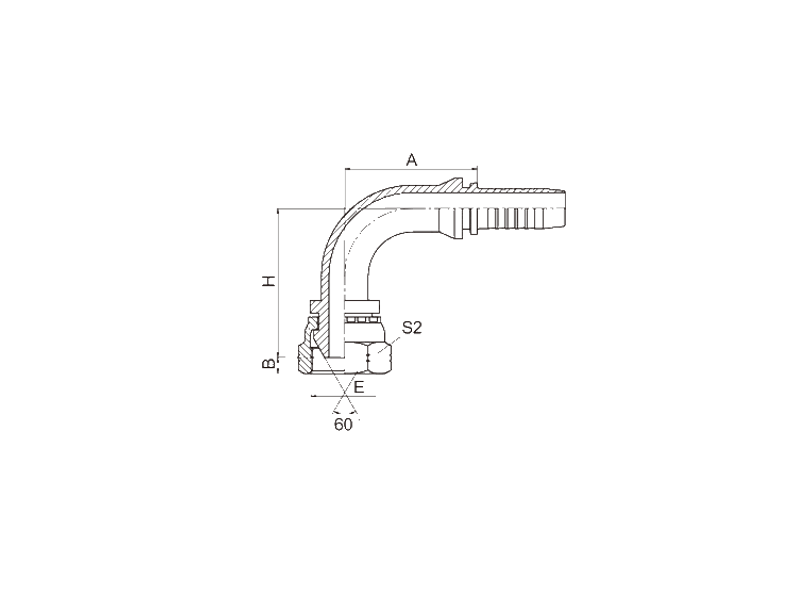

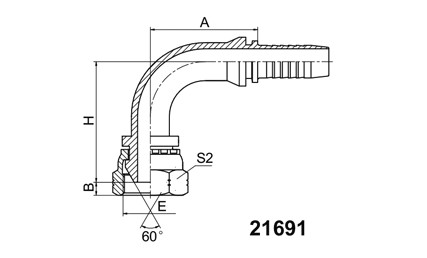

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 21691 90°NPSM FEMALE 60°CONE (SAE J514)
| PART NO. | THREADE | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | A | B | H | S2 | ||
| 21691-04-04 | 1/4"X18 | 6 | 04 | 30 | 4.5 | 40.5 | 19 |
| 21691-06-04 | 3/8"X18 | 6 | 04 | 30 | 6 | 37.7 | 22 |
| 21691-06-05 | 3/8..X18 | 8 | 05 | 34 | 6 | 40.7 | 22 |
| 21691-06-06 | 3/8"X18 | 10 | 06 | 35.3 | 6 | 45.3 | 22 |
| 21691-08-08 | 1/2"X14 | 12 | 08 | 41 | 7.5 | 53.2 | 27 |
| 21691-12-10 | 3/4"X14 | 16 | 10 | 56.5 | 8-9 | 53.5 | 32 |
| 21691-12-12 | 3/4"X14 | 20 | 12 | 65.5 | 8.9 | 69.1 | 32 |
| 21691-16-12T | 1"X11.5 | 20 | 12 | 65.5 | 10.5 | 64.5 | 41 |
| 21691-16-16 | 1"X11.5 | 25 | 16 | 76.7 | 10.5 | 75 | 41 |
| 21691-20-20W | 1.1/4"X11.5 | 32 | 20 | 91.5 | 11.2 | 86 | 50 |
| 21691-24-20T | 1.1/2"X11.5 | 32 | 20 | 91.5 | 11.2 | 83.5 | 55 |
| 21691-24-24W | 1.1/2"X11.5 | 40 | 24 | 109.4 | 11.2 | 101.5 | 55 |
| 21691-32-32W | 2"X11.5 | 50 | 32 | 131.8 | 11.2 | 124.5 | 70 |
1.For use with braided hoses.
2.If use with spiral hoses.hose fitting series number is 21692-XX-XX.
