HYDRAULIC 20691 90°METRIC FEMALE 60°CONE

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 20691 90°METRIC FEMALE 60°CONE

Model:20691

Send Inquiry

Product Description

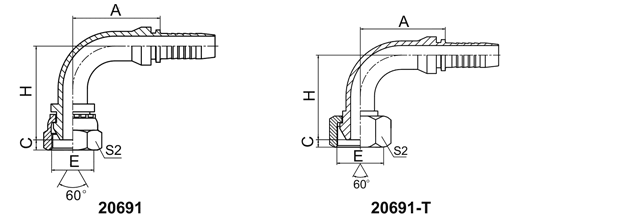

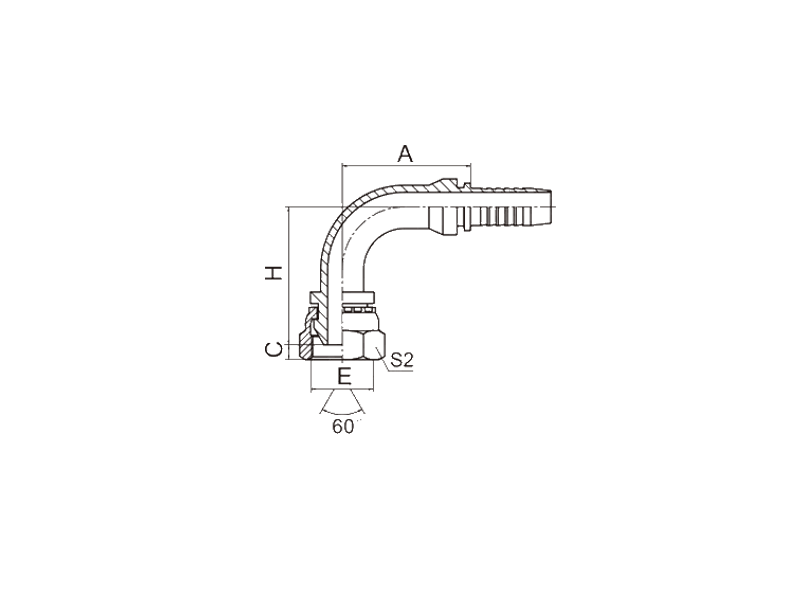

HYDRAULIC 20691 90°METRIC FEMALE 60°CONE


PART NO. THREAD E  HOSE BORE  DIMENSIONS
DN DASH A C H S2
20691-14-04 M14X1.5 6 04 30 5.5 37 19
20691-16-05 M16X1.5 8 05 33 5-5 40.5 22
20691-18-06 M18X1.5 10 06 35.3 5.5 43.8 24
20691-22-08 M22X1.5 12 08 41 6 52 27
20691-27-10DT M27X1.5 16 10 56 6 55 32
20691-30-12D M30X1.5 20 12 66.2 6 68.5 36
20691-36-16 M36X2 25 16 78 6.5 76.5 41
20691-36-14T M36X2 22 14 71.2 6.5 67.5 41
20691-39-16T M39X2 25 16 76.7 6.5 74 46
20691-45-20T M45X2 32 20 91.5 8.5 85 55
20691-52-24T M52X2 40 24 109.4 10 99 60

NOTE:

1.For use with braided hoses.

2.If use with spiral hoses.hose fitting series number is 20292-XX-XX.
