HYDRAULIC 20591C 90°METRIC FEMALE MULTISEAL H.T. (DIN3868)
  • Air ProHYDRAULIC 20591C 90°METRIC FEMALE MULTISEAL H.T. (DIN3868)

HYDRAULIC 20591C 90°METRIC FEMALE MULTISEAL H.T. (DIN3868)

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 20591C 90°METRIC FEMALE MULTISEAL H.T. (DIN3868)

Model:20591C

Send Inquiry

Product Description

HYDRAULIC 20591C 90°METRIC FEMALE MULTISEAL H.T. (DIN3868)

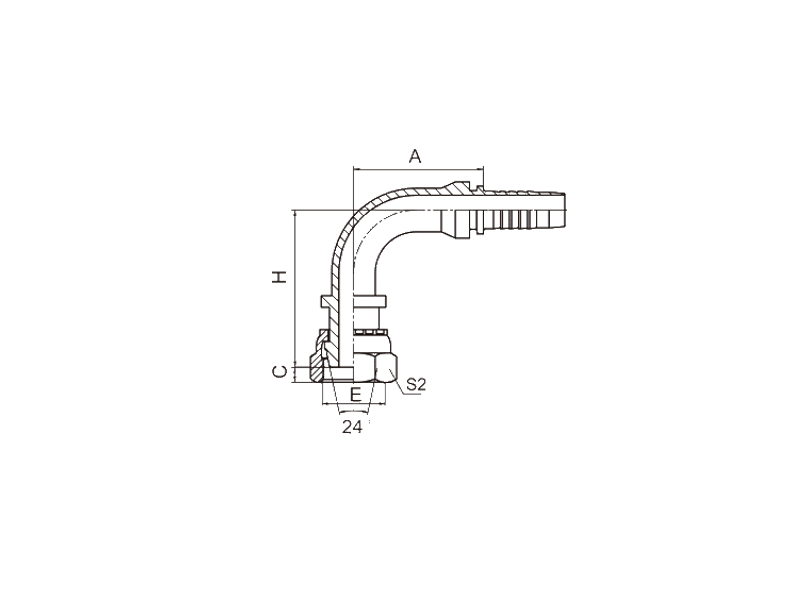

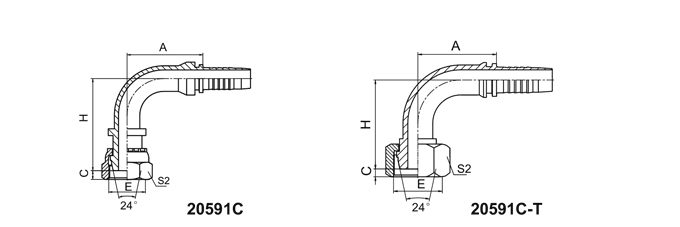

PART NO. THREAD E  HOSE BORE 管子外径  DIMENSIONS
DN DASH TUBEO.D. A C H S2
20591C-16-04 M16X1.5 6 04 8 30 3 40 22
20591C-18-04T M18X1.5 6 04 10 30 3 38.5 22
20591C-20-05T M20X1.5 8 05 12 33 4.5 42 24
20591C-20-06T M20X1.5 10 06 12 35.3 45 45-7 24
20591C-22-06T M22X1.5 10 06 14 35.3 4.5 44.7 27
20591C-24-08T M24X1.5 12 08 16 41 5 52 30
20591C-30-10T M30X2 16 10 20 56.5 7 56.5 36
20591C-36-12T M36X2 20 12 25 65.5 6-5 66.5 41
20591C-42-16T M42X2 25 16 30 78 9 73.5 50
20591C-52-20T M52X2 32 20 38 93 8 87.5 60

NOTE:

1.For use with braided hoses.

2.If use with spiral hoses.hose fitting series number is 20592C-XX-XX.
