HYDRAULIC 20591 90°METRIC FEMALE 24°CONE O-RING H.T. (ISO 12151-2--DIN 3865)

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 20591 90°METRIC FEMALE 24°CONE O-RING H.T. (ISO 12151-2--DIN 3865)

Model:20591

Send Inquiry

Product Description

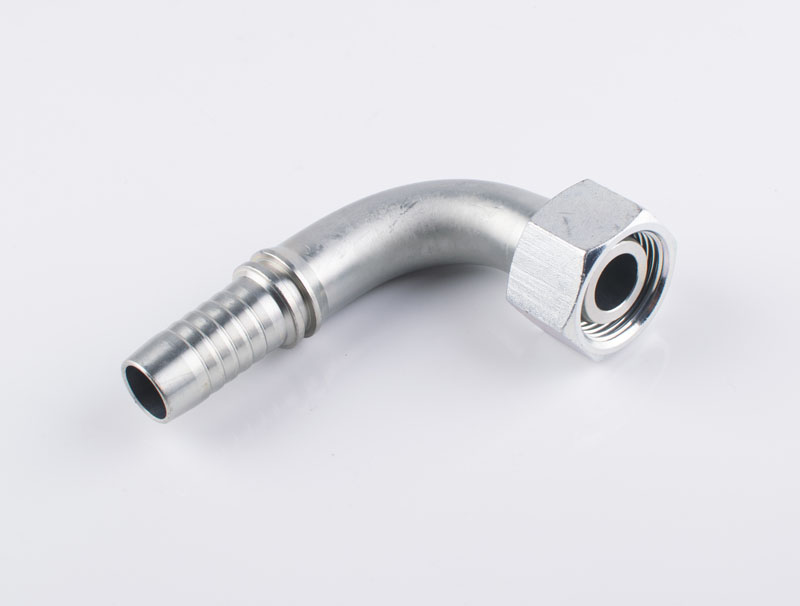

HYDRAULIC 20591 90°METRIC FEMALE 24°CONE O-RING H.T. (ISO 12151-2--DIN 3865)



PART NO. THREADE  HOSE BORE TUBEO.D. ORING DIMENSIONS
DN DASH A C H S2
20591-14-04 M14X1.5 6 04 6 004.5X1.5 30 1.1 47.5 19
20591-16-04 M16X1.5 6 04 8 006.5X1.5 30 1.5 48 22
20591-16-05 M16X1.5 8 05 8 006.5X1.5 33 1.5 51 22
20591-18-05T M18X1.5 8 05 10 008.0X1.5 33 2 41.5 22
20591-18-06 M18X1.5 10 06 10 008.0X1.5 35.3 2 52.8 24
20591-20-06T M20X1.5 10 06 12 010.0X1.5 35.8 2.5 46.3 24
20591-20-08 M20X1.5 12 08 12 010.0X1.5 41 2.5 61 27
20591-22-06T M22X1.5 10 06 14 011.0X2.0 35.3 2.5 46.8 27
20591-22-08 M22X1.5 12 08 14 011.0X2.0 41 2-5 61 27
20591-24-08T M24X1.5 12 08 16 013.0X2.0 41 3 53 30
20591-24-10 M24X1.5 16 10 16 013.0X2.0 56.5 2.5 67.5 30
20591-30-10T M30X2 16 10 20 016.3X2.4 56.5 3 60.5 36
20591-30-12 M30X2 20 12 20 016.3X2.4 65.5 3 81 36
20591-36-12T M36X2 20 12 25 020.3X2.4 66.2 3 70 41
20591-36-14T M36X2 22 14 25 020.3X2.4 71.2 3 71 41
20591-42-16T M42X2 25 16 30 025.3X2.4 78 5 77.5 50
20591-52-20T M52X2 32 20 38 033.3X2.4 93 6.5 89 60
20591-52-24T M52X2 40 24 38 033.3X2.4 109.4 6-5 103 60

NOTE:

1.For use with braided hoses.

2.If use with spiral hoses.hose fitting series number is 20592-XX-XX.
