Product Description

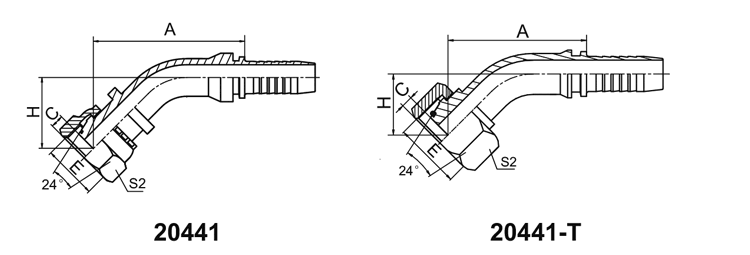

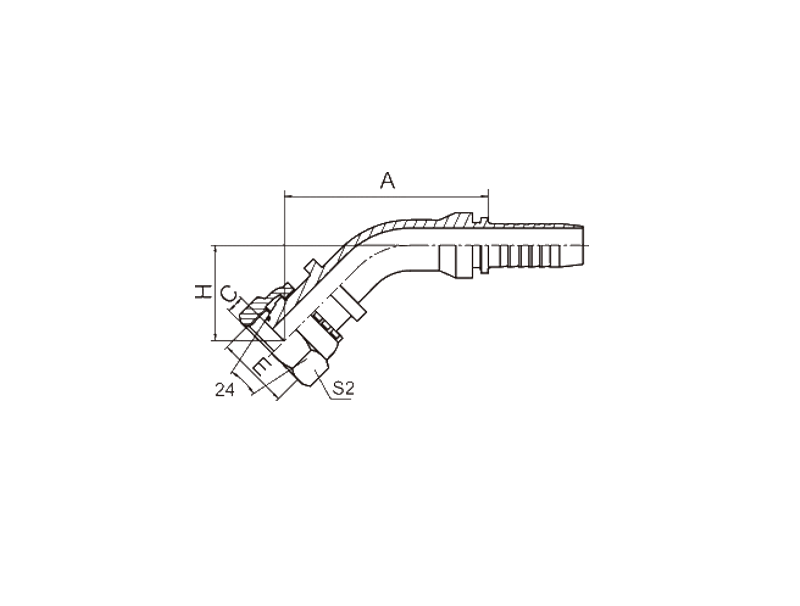

HYDRAULIC 20441 45°METRIC FEMALE 24°CONE O-RING L.T. (ISO 12151-2--DIN 3865)

PART NO.	THREADE	HOSE BORE		TUBEO.D.	ORING		DIMENSIONS
PART NO.	THREADE	DN	DASH	TUBEO.D.	ORING	A	C	H	S2
20441-14-04	M14X1.5	6	04	8	006.5X1.5	49	2	27	19
20441-16-05	M16X1.5	8	05	10	008.0X1.5	51.5	2	28.2	22
20441-16-06	M16X1.5	10	06	10	008.0X1.5	53.4	2	29.2	22
20441-18-05T	M18X1.5	8	05	12	010.0X1.5	46.2	2-5	22.9	22
20441-18-06	M18X1.5	10	06	12	010.0X1.5	54.2	2.5	29.9	24
20441-22-05T	M22X1.5	8	05	15	012.0X2.0	48.3	2.5	25	27
20441-22-06T	M22X1.5	10	06	15	012.0X2.0	50.4	2.5	25.7	27
20441-22-08	M22X1.5	12	08	15	012.0X2.0	68.1	2.5	33.2	27
20441-26-08T	M26X1.5	12	08	18	015.0X2.0	62	2-5	26.1	32
20441-26-10	M26X1.5	16	10	18	015.0X2.0	80.7	2-5	35.9	32
20441-26-12	M26X1.5	20	12	18	015.0X2.0	86.9	2.5	39.5	32
20441-27-10T	M27X1.5	16	10	18	015.0X2.0	72	2.5	27.7	32
20441-27-12	M27X1.5	20	12	18	015.0X2.0	86.9	2-5	39.5	32
20441-30-10T	M30X2	16	10	22	020.0X2.0	75.1	4	30.3	36
20441-30-12	M30X2	20	12	22	020.0X2.0	89.1	4	41.7	36
20441-36-12T	M36X2	20	12	28	026.0X2.0	82	4	33.9	41
20441-36-14T	M36X2	22	14	28	026.0X2.0	83.7	4	33.3	41
20441-45-20T	M45X2	32	20	35	032.0X2.5	99.6	5	40.8	55
20441-52-20T	M52X2	32	20	42	038.0X2.5	103	5.5	41.9	60
20441-52-24T	M52X2	40	24	42	038.0X2.5	117	5.5	45.8	60

NOTE:

1.For use with braided hoses.

2.If use with spiral hoses.hose fitting series number is 20442-XX-XX.
