HYDRAULIC 20211 GB METRIC FEMALE FLAT SEAT

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 20211 GB METRIC FEMALE FLAT SEAT

Model:20211

Send Inquiry

Product Description

HYDRAULIC 20211 GB METRIC FEMALE FLAT SEAT

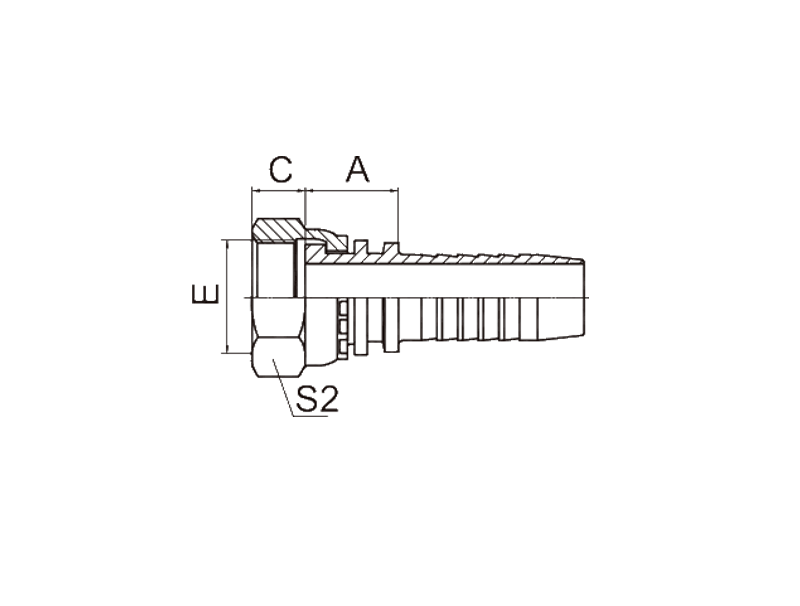

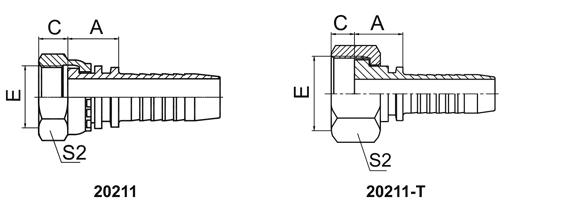

PART NO. THREADE  HOSE BORE  DIMENSIONS
DN DASH A C S2
20211-10-02 M10X1 4 02 14 6 14
20211-12-03 M12X1.25 5 03 14 8 17
20211-14-04 M14X1.5 6 04 15.5 8.5 19
20211-14-05 M14X1.5 8 05 15.5 8.5 19
20211-16-04 M16X1.5 6 04 16.5 8 22
20211-16-05 M16X1.5 8 05 16.5 8 22
20211-16-06 M16X1.5 10 06 16.5 8 22
20211-18-05T M18X1.5 8 05 17.5 8 24
20211-18-06 M18X1.5 10 06 17.5 8 24
20211-20-06T M20X1.5 10 06 16 10 24
20211-20-08 M20X1.5 12 08 18.5 10 27
20211-22-06T M22X1.5 10 06 16 10 27
20211-22-08 M22X1.5 12 08 18.5 10 27
20211-22-10 M22X1.5 16 10 19.5 10 27
20211-24-08T M24X1.5 12 08 16.5 11 30
20211-24-10 M24X1.5 16 10 20.5 10.5 30
20211-27-08T M27X1.5 12 08 18.5 10 32
20211-27-10T M27X1.5 16 10 19.5 10 32
20211-30-12 M30X1.5 20 12 21.5 11 36
20211-33-14 M33X2 22 14 21.5 13 41
20211-36-12T M36X2 20 12 20 13 41
20211-36-14T M36X2 22 14 20 13 41
20211-39-16T M39X2 25 16 23.5 13 46
20211-42-20 M42X2 32 20 26 15 50
20211-45-20T M45X2 32 20 25 15 55
20211-52-24T M52X2 40 24 25 17 60
20211-60-28T M60X2 45 28 26 20 70
20211-64-32T M64X2 50 32 26 23 75

NOTE:

1.For use with braided hoses.

2.If use with spiral hoses.hose fitting series number is 20212-XX-XX.
