HYDRAULIC 1QT-SPMETRIC MALE 74°CONE / BSPT MALE
  • Air ProHYDRAULIC 1QT-SPMETRIC MALE 74°CONE / BSPT MALE

HYDRAULIC 1QT-SPMETRIC MALE 74°CONE / BSPT MALE

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials：stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 1QT-SPMETRIC MALE 74°CONE / BSPT MALE

Send Inquiry

Product Description

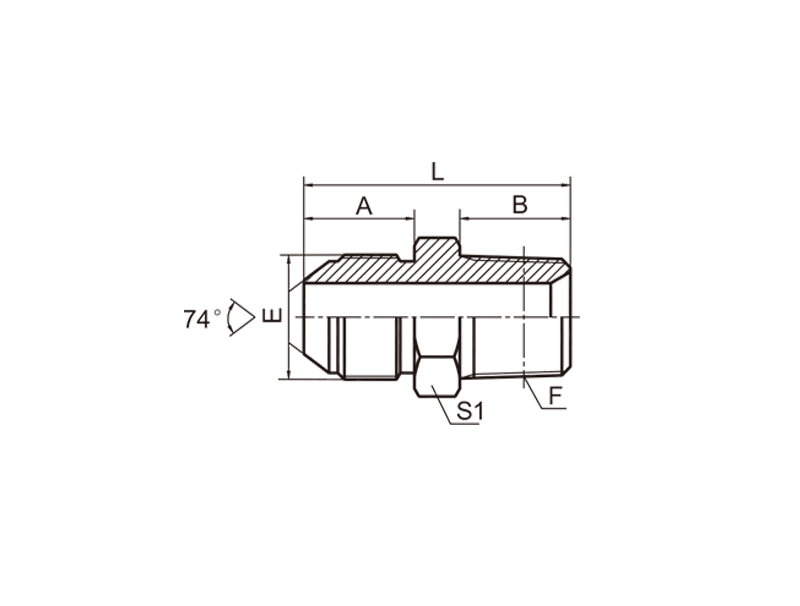

HYDRAULIC 1QT-SPMETRIC MALE 74°CONE / BSPT MALE



 PART NO.  THREAD TUBE O.D.   DIMENSIONS
E F D A B L S1 S2
1QT-10-02SP M10X1 R1/8"X28 5 12 10 28 12 14
1QT-14-04SP M14X1.5 R1/4"X19 8 17 14.5 37.5 17 17
1QT-14-06SP M14X1.5 R3/8"X19 8 17 15 38 17 17
1QT-16-04SP M16X1.5 R1/4"X19 10 18 14.5 38.5 17 19
1QT-16-06SP M16X1.5 R3/8"X19 10 18 15 39 17 19
1QT-18-04SP M18X1.5 R1/4"X19 12 18 14.5 38.5 19 22
1QT-18-06SP M18X1.5 R3/8"X19 12 18 15 39 19 22
1QT-22-08SP M22X1.5 R1/2"X14 14 19.5 20 47.5 24 27
1QT-27-08SP M27X1.5 R1/2"X14 18 20 20 50 30 32
1QT-27-12SP M27X1.5 R3/4"X14 18 20 20 50 30 32
1QT-30-12SP M30X1.5 R3/4"X14 20 23 20 54 32 36
1QT-33-12SP M33X2 R3/4"X14 22 26 20 57 36 38
1QT-36-16SP M36X2 R1"X11 25 26 25.5 61.5 38 41
1QT-39-16SP M39X2 R1"X11 28 26 25.5 64.5 41 46
1QT-45-20SP M45X2 R1.1/4"X11 34 28.5 26.5 68 46 55

Note：In case if you are interested to order the adapter in complete set with sleeve and nut , it is necessary to insert suffix "RN" after our part no.,for example 1QT-22-08SP/RN, The sleeve NO. is NB500-Q and the nut NO. is NB200-Q。
