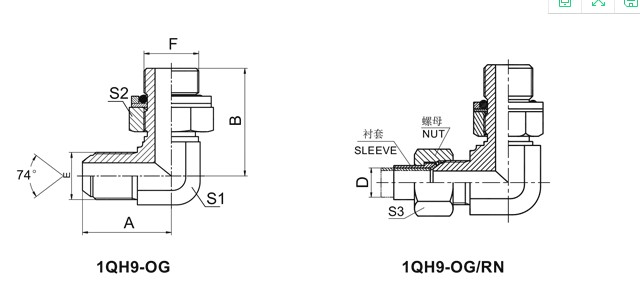

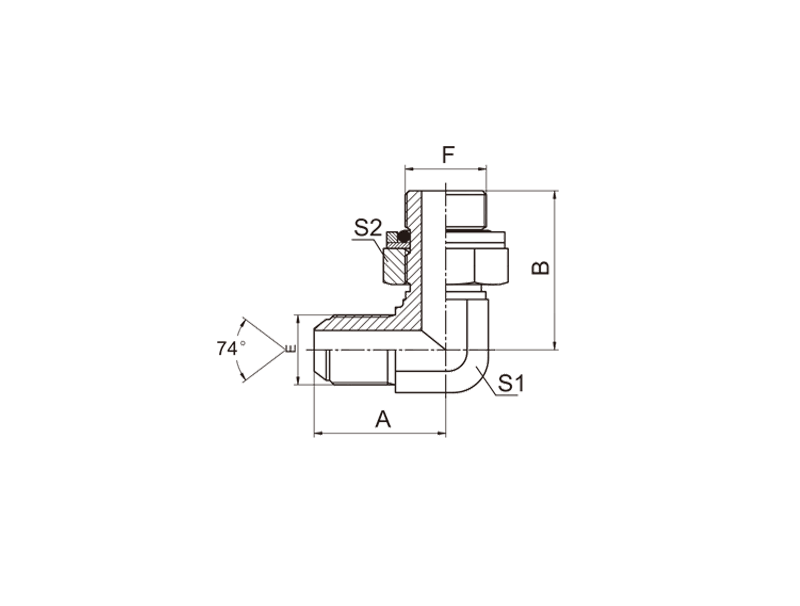

HYDRAULIC  1QH9-OG 90°ELBOW METRIC 74°CONE / METIRC MALE ADJUSTABLE STUD END L-SERIES ISO 6149-3



 PART NO.  THREAD TUBE O.D. O-RING    DIMENSIONS
E F F A B S1 S2 S3
1QH9-14-12OG M14X1.5 M12X1.5 8 O09.3X2.4 30.2 32 14 17 17
1QH9-16-14OG M16X1.5 M14X1.5 10 O11.3X2.4 32 35.5 16 19 19
1QH9-18-16OG M18x1.5 M16x1.5 12 O13.3X2.4 34 36 19 22 22
1QH9-22-18OG M22x1.5 M18x1.5 14 O15.3X2.4 37.5 39.5 22 24 27
1QH9-27-22OG M27x1.5 M22x1.5 18 O19.3X2.4 41.5 43.5 27 27 32
1QH9-30-27OG M30x1.5 M27x2 20 O23.5X3.0 45.8 50 30 32 36
1QH9-33-27OG M33x2 M27x2 22 O23.5X3.0 49.5 52 33 32 41
1QH9-36-33OG M36x2 M33x2 25 O29.2X3.0 51.5 54 36 41 41
1QH9-39-33OG M39x2 M33x2 28 O29.2X3.0 55.5 57.2 41 41 46
1QH9-45-42OG M45x2 M42x2 34 O38.5X3.0 62.5 61 48 50 50
Note:

1. In case if you are interested to order the adapter in complete set with sleeve and nut , it is necessary to insert suffix "RN" after our part no.,for example 1QH9-22-18/RN, The sleeve NO. is NB500-Q and the nut NO.is NB200-Q。

2. Fend is connected with ISO 9974-1 port and connected with ISO 6149-1 port without retaining ring.
