HYDRAULIC 1QG METRIC MALE 74°CONE / BSP MALE O-RING
  • Air ProHYDRAULIC 1QG METRIC MALE 74°CONE / BSP MALE O-RING

HYDRAULIC 1QG METRIC MALE 74°CONE / BSP MALE O-RING

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials：stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 1QG METRIC MALE 74°CONE / BSP MALE O-RING

Model:1QG

Send Inquiry

Product Description

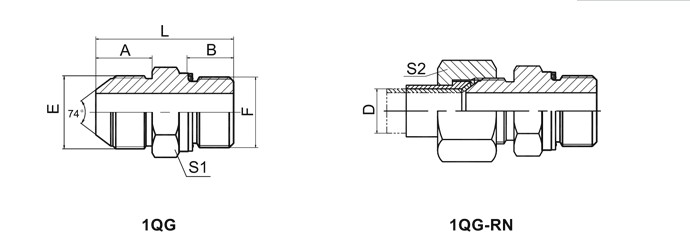

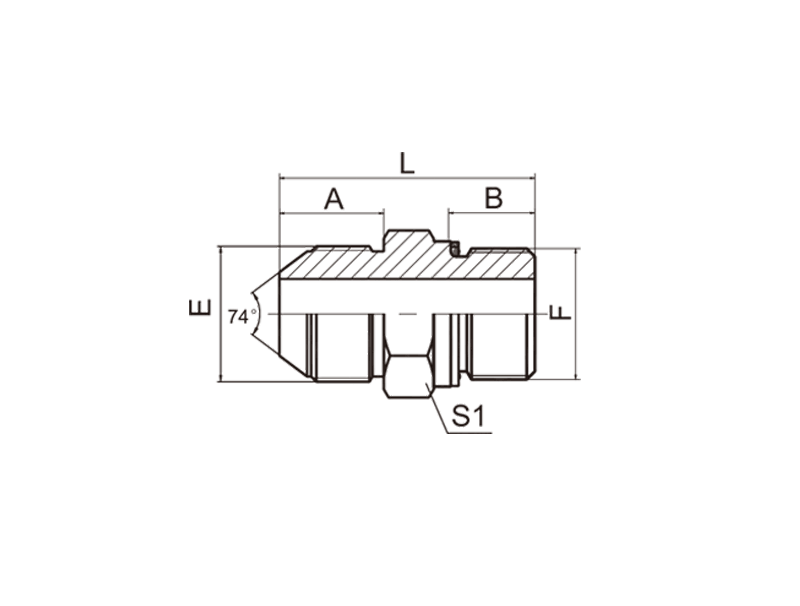

HYDRAULIC  1QG METRIC MALE 74°CONE / BSP MALE O-RING




PART NO. 		 THREAD D  O-RING   DIMENSIONS
E F TUBE O.D. F  A B L S1 S2
1QG-14-04 M14X1.5 G1/4"X19 8 O111 17 11 36 19 17
1QG-16-06 M16X1.5 G3/8"X19 10 O113 18 11.5 40 22 19
1QG-18-06 M18X1.5 G3/8"X19 12 O113 18 11.5 40 22 22
1QG-18-08 M18X1.5 G1/2"X14 12 O115 18 14 43 27 22
1QG-22-08 M22X1.5 G1/2"X14 14 O115 19.5 14 44.5 27 27
1QG-27-12 M27X1.5 G3/4"X14 18 O119 20 15.5 49.5 32 32
1QG-30-12 M30X1.5 G3/4"X14 20 O119 23 15.5 52.5 32 36
1QG-39-16 M39X2 G1"X11 28 O217 26 18 60 41 46
1QG-45-20 M45X2 G1.1/4"X11 34 O222 28.5 20 66.5 50 55
Note：In case if you are interested to order the adapter in complete set with sleeve and nut , it is necessary to insertsuffix "RN" after our part no.,for example 1QG-18-06RN, The sleeve NO. is NB500-Q and the nut NO. is NB200-Q。2 F end is connected with DIN 3852 port.
