These hydraulic parts come in a variety of shapes such as straight, elbow (at varying angles), and tee. Other ways to connect hydraulic hoses include hydraulic quick couplers, as well as through some hydraulic hose adapters and plugs. Products differ by hydraulic hose ID, Hydraulic fitting connection type, fitting shape and other considerations.
SAE (45° Flare)A Hydraulic fittings' term usually applied to fittings having a 45° angle flare or seat. Soft copper tubing is generally used in such applications as it is easily flared to the 45° angle. These are for low-pressure applications—such as for fuel lines and refrigerant lines. The SAE 45° flare male will mate with an SAE 45° flare female only or a dual seat JIC/SAE 45°.* The SAE male has straight threads and a 45° flare seat. The SAE female has straight threads and a 45° flare seat. The seal is made on the 45° flare seat. Some sizes have the same threads as the SAE 37° flare. Carefully measure the seat angle to differentiate.

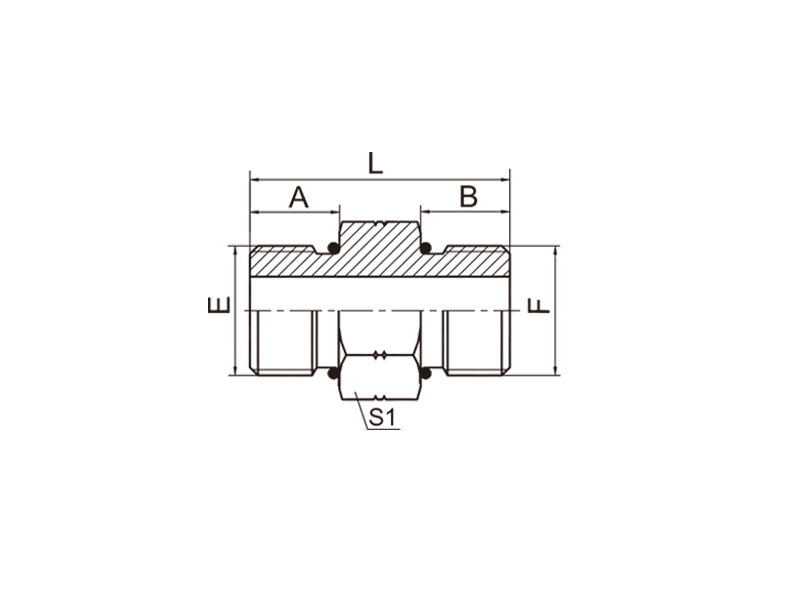

PART NO. |
THREAD |
O-RING |
DIMENSIONS |
|||||
E |
F |
E END |
F END |
A |
B |
L |
S1 |
|
1O-04 |
7/16"X20 |
7/16"X20 |
8.92X1.83 |
8.92X1.83 |
9.14 |
9.14 |
24.5 |
14 |
1O-05 |
1/2"X20 |
1/2"X20 |
10.52X1.83 |
10.52X1.83 |
9.14 |
9.14 |
24.5 |
17 |
1O-06 |
9/16"X18 |
9/16"X18 |
11.89X1.98 |
11.89X1.98 |
9.93 |
9.93 |
26 |
17 |
1O-08 |
3/4"X16 |
3/4"X16 |
16.36X2.21 |
16.36X2.21 |
11.13 |
11.13 |
30.5 |
22 |
1O-10 |
7/8"X14 |
7/8"X14 |
19.18X2.46 |
19.18X2.46 |
12.7 |
12.7 |
35.5 |
27 |
1O-12 |
1.1/16"X12 |
1.1/16"X12 |
23.47X2.95 |
23.47X2.95 |
15.09 |
15.09 |
41 |
32 |
1O-16 |
1.5/16"X12 |
1.5/16"X12 |
29.74X2.95 |
29.74X2.95 |
15.09 |
15.09 |
41 |
38 |
High quality hydraulic fitting can satisfy your different needs with its special quality and features.
1.high quality Zinc plated,Zn-Ni plated,Cr3,Cr6 plated.
2.high precision.all edges without burrs,brake sharp edges.
3.competitive price.
4. MOQ:300PCS
5. Material: iron, carbon steel, stainless steel, other metals
6.Standard / specification: Standard or as per drawing and samples (OEM)
7. Size: as per customers' requests
Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.
1. Delivery:As general,we can guarantee the delivery within one month.
2. Port of loading: Ningbo or Shanghai
3. Samples Fee: We can offord the samples fee.
